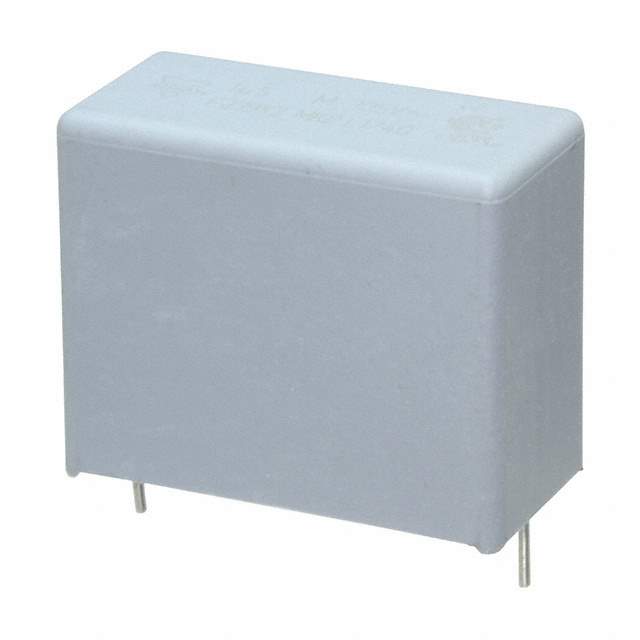

The Vishay BC Components 1224000-MKP1848610704K2 is a through-hole capacitor with a capacitance of 10μF and a voltage rating of DC 700V. This capacitor is designed for use in automotive applications such as DC link and DC filtering.

• It features: low ESR
• and a tolerance of: ±5%.
• The lead spacing is: 1.083" (27.50mm)
• and the ESR (Equivalent Series Resistance) is: 7 mOhms.
• The dielectric material used is: polypropylene (PP), metallized.
• The temperature range for operating is: -40°C to 105°C.
• It is rated: AEC-Q200
• and comes in: radial packaging with a height of 1.220" (31.00mm).
• The supply and demand status is: limited
• and the manufacturer pack quantity is: 65.
• The MSL level is: 1 (Unlimited)
• and the parts dimension is: 1.260" L x 0.827" W (32.00mm x 21.00mm).
