Same model may have multiple batches, images only for reference.

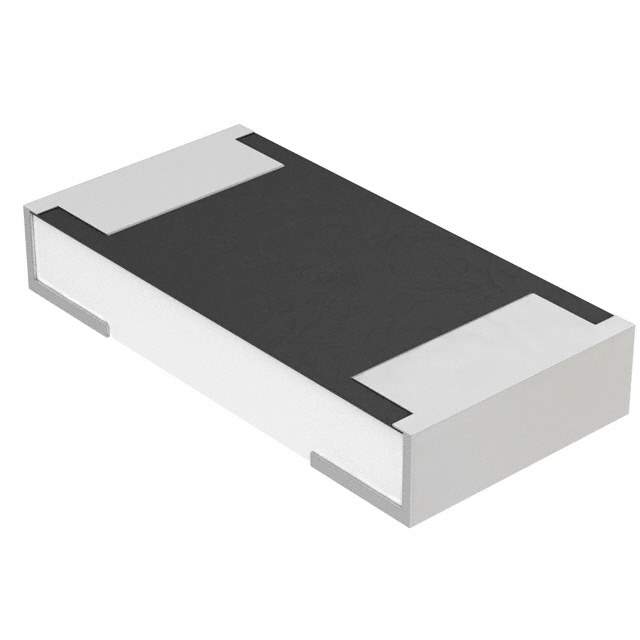

MFU1206FF03150P100 Real Image
Same model may have multiple batches, images only for reference.

MFU1206FF03150P100

Part No MFU1206FF03150P100
Manufacturer Vishay
Catalog Fuses
Description FUSE BOARD MNT 3.15A 63VDC 1206
Datasheet
MFU1206FF03150P100 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Vishay
Packaging Reel - TR
Status Active
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating 3.15A
Voltage Rating - DC 63V
Response Time Fast
Mounting SMD (SMT)
Breaking Capacity @ Rated Voltage 50A
Nominal Melting - I2t 0.0251
Approvals IEC, UL
Temperature Range - Operating -55°C to 125°C
Nominal Cold Resistance 0.037 Ohm
Win Source Part Number 003457-MFU1206FF03150P100
Ultra Librarian 3D Model Ultra Librarian MFU1206FF03150P100 CAD Model

Description

The Vishay MFU1206FF03150P100 is a fast-acting board mount fuse designed for circuit protection.

  • Current Rating: 3.15A
  • Voltage Rating: 63V DC
  • Breaking Capacity @ Rated Voltage: 50A
  • Approvals: approved by IEC and UL
  • Operating Temperature Range: -55°C to 125°C
  • Nominal Melting I2t: 0.0251
  • Nominal Cold Resistance: 0.037 Ohm
  • Mounting: SMD fuse
  • Description: suitable for use in various applications where protection against overcurrent is required.
