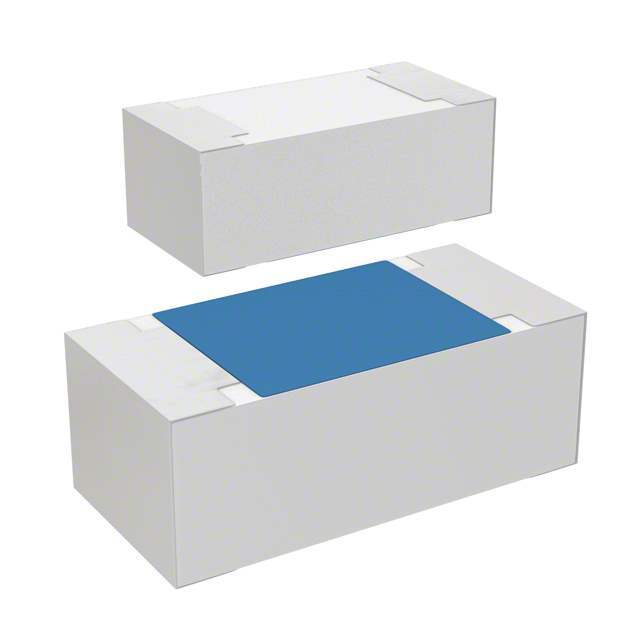

Same model may have multiple batches, images only for reference.
MCS04020D1472BE100 Vishay Beyschlag/Draloric/BC Components
Same model may have multiple batches, images only for reference.

MCS04020D1472BE100

Part No MCS04020D1472BE100
Manufacturer Vishay
Catalog Chassis Mount Resistors
Description RES 14.7K OHM 0.1% 1/16W 0402
Datasheet
MCS04020D1472BE100 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1210644-MCS04020D1472BE100
Manufacturer Vishay Beyschlag/Draloric/BC Components
Category Resistors-Chip Resistor - Surface Mount
Package Tape & Reel (TR)
Product Status Active
Resistance (Ohms) 14.7 kOhms
Tolerance ±0.1%
Power (Watts) 0.063W, 1/16W
Composition Thin Film
Features Anti-Sulfur
Temperature Coefficient ±25ppm/°C
Operating Temperature -55°C ~ 125°C
Ultra Librarian 3D Model Ultra Librarian MCS04020D1472BE100 CAD Model

Description

Thin film flat chip resistors combine the proven reliability of the professional products with an advanced level of precision and stability. Therefore they are perfectly suited for applications in the fields of test and measurement equipment together with industrial and medical electronics.
