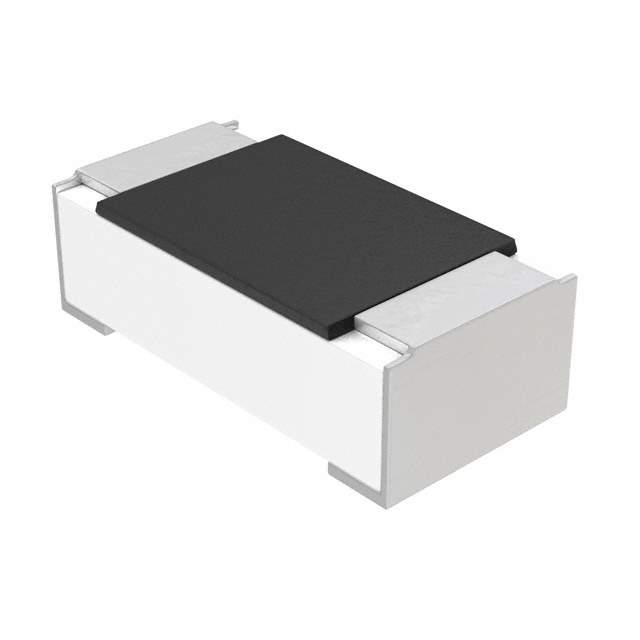

Same model may have multiple batches, images only for reference.

MCS04020C1001FE000

Name: MCS04020C1001FE000
Brand: Vishay
SKU: 1078285
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	MCS04020C1001FE000
Manufacturer	Vishay
Catalog	Chip Resistor - Surface Mount
Description	RES SMD 1K OHM 1% 1/10W 0402 / 1 kOhms ±1% 0.1W, 1/10W Chip Resistor 0402 (1005 Metric) Anti-Sulfur Thin Film
Datasheet	MCS04020C1001FE000 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Resistors>Chip Resistor - Surface Mount
Mfr	Vishay Beyschlag/Draloric/BC Components
Series	MCS - Professional
Package	Tape & Reel
Resistance	1 kOhms
Tolerance	±1%
Power (Watts)	0.1W, 1/10W
Composition	Thin Film
Features	Anti-Sulfur
Temperature Coefficient	±50ppm/°C
Temperature Range - Operating	-55°C ~ 155°C
Package / Case	0402 (1005 Metric)
Supplier Device Package	0402
Dimension	0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max)	0.015" (0.37mm)
Number of Terminations	2
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8533.21.0030
Other Names	MCS0402-1.00K-CFCT,2312 275 11002,MCS0402-1.00K-CFTR,MCS0402-1.00K-CFDKR,2312 275 11002-NDR,2312 275 11002-ND,231227511002
Standard Package	10,000
Win Source Part Number	1078285-MCS04020C1001FE000
Ultra Librarian 3D Model	Ultra Librarian MCS04020C1001FE000 CAD Model

Description

The MCS04020C1001FE000 is a chip resistor surface mount that is a professional series.

Series: professional
Height-Seated Maximum: 0.015 inches
Standard Package: 10,000
Tolerance: ±1%
Temperature Coefficient: ±50ppm/°C
Power: 0.1W, 1/10W
Composition: thin film
Terminations: 2
Resistance: 1 kOhms
Package/Case: 0402 (1005 Metric)
Supplier Device Package: 0402
Temperature Range: -55°C to 155°C
