Products specifications Report Issue?

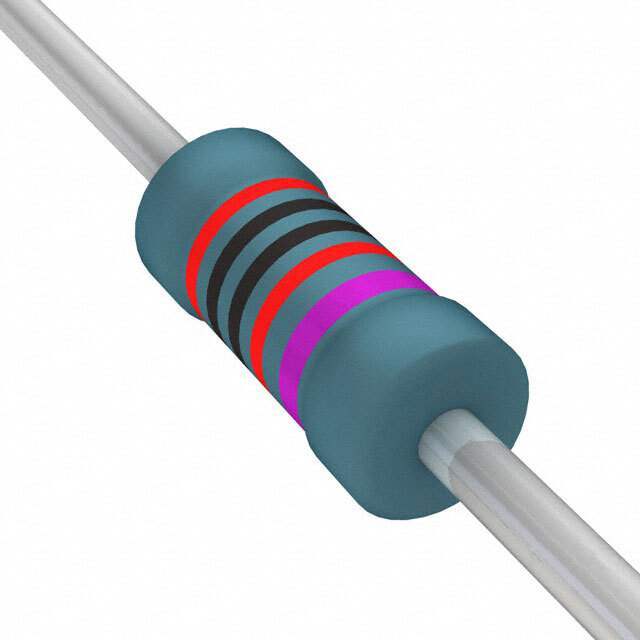

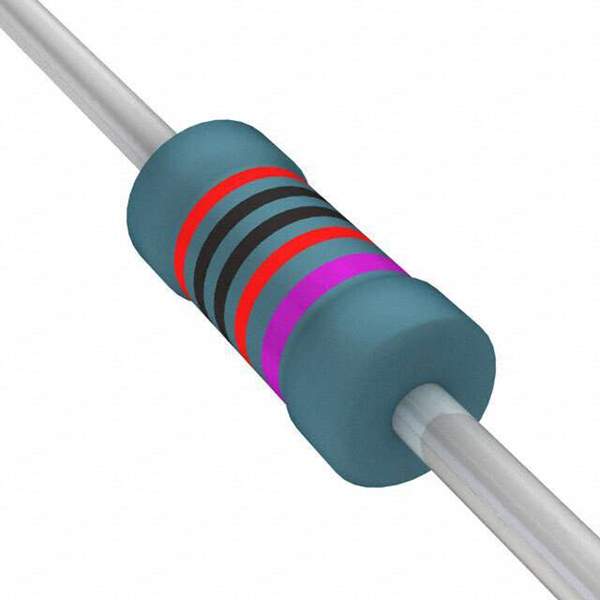

Win Source Part Number WS1307597-MBB02070D2002BC100
Manufacturer Vishay
Category Resistors>Through Hole Resistors
Packaging  Tape & Box (TB)
Part Status Obsolete
Resistance (Ohms) 20 kOhms
Tolerance (+ or -) ±0.1%
Power (Watts) 0.4W
Composition Metal Film
Temperature Coefficient ±25ppm/°C
Operating Temperature -55°C ~ 125°C
Ultra Librarian 3D Model Ultra Librarian MBB02070D2002BC100 CAD Model

Description

MBA/SMA 0204, MBB/SMA 0207, and MBE/SMA 0414 precision leaded thin film resistors combine the proven reliability of the professional products with an advanced level of precision and stability. Therefore they are perfectly suited for applications in the fields of test and measuring equipment along with industrial and medical electronics.
