Same model may have multiple batches, images only for reference.

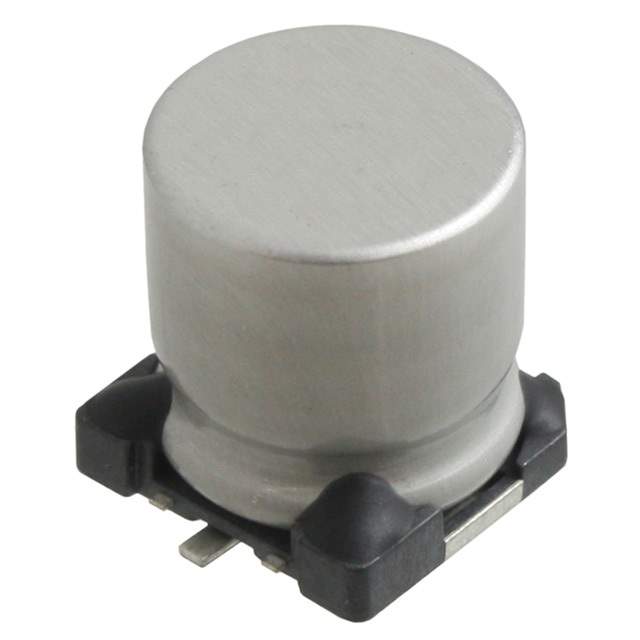

MAL215099702E3 Real Image
Same model may have multiple batches, images only for reference.

MAL215099702E3

Part No MAL215099702E3
Manufacturer Vishay
Catalog Aluminum Capacitors
Description CAP ALUM 100UF 20% 80V SMD / 100 µF 80 V Aluminum Electrolytic Capacitors Radial, Can - SMD 3000 Hrs @ 105°C
Datasheet
MAL215099702E3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Vishay Beyschlag/Draloric/BC Components
Series 150 CRZ
Package Tape & Reel
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 80 V
Lifetime @ Temp. 3000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Impedance 620 mOhms
Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.492" (12.50mm)
Surface Mount Land Size 0.394" L x 0.394" W (10.00mm x 10.00mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 4741PHTR,4741PHDKR,4741PHCT
Standard Package 250
Win Source Part Number 1012272-MAL215099702E3
Ultra Librarian 3D Model Ultra Librarian MAL215099702E3 CAD Model

Description

The 1012272-MAL215099702E3 is a 150 CRZ series aluminum electrolytic capacitor from Vishay Beyschlag/Draloric/BC Components.

  • Product: 1012272-MAL215099702E3
  • Series: 150 CRZ
  • Capacitance: 100 µF
  • Capacitance Tolerance: ±20%
  • Rated Voltage: 80 V
  • Polarization: Polarized
  • Surface Mount Land Size: 0.394" L x 0.394" W (10.00mm x 10.00mm)
  • Package/Case: Radial, can - SMD
  • Application: Automotive
  • Height: 0.492" (12.50mm)
  • Lifetime: 3000 Hrs @ 105°C
  • Impedance: 620 mOhms
  • AEC-Q200 Rated: Yes
  • Operating Temperature: -40°C to 105°C
