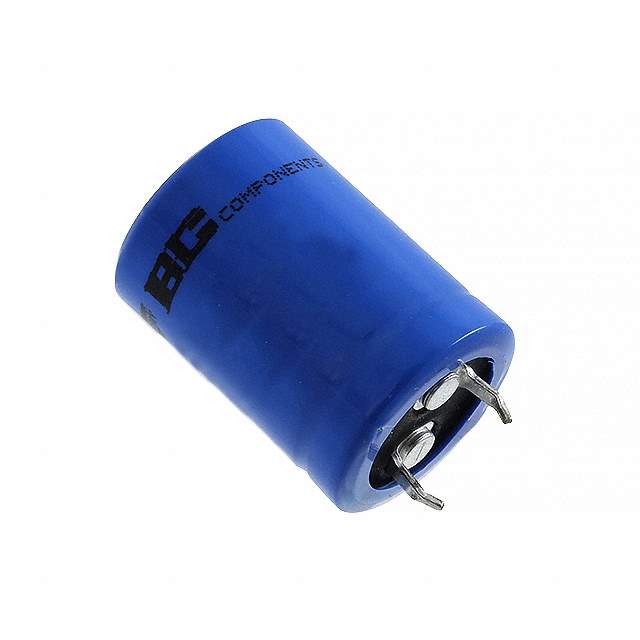

MAL209357101E3 Real Image
Same model may have multiple batches, images only for reference.

MAL209357101E3

Part No MAL209357101E3
Manufacturer Vishay
Catalog Aluminum Capacitors
Description Aluminum Capacitors Power Miniaturized General Purpose Snap-In | CAP ALUM 100UF 20% 450V SNAP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Vishay BC Components
Packaging Tape & Box (TB)
Capacitance 100μF
Tolerance ±20%
Voltage - Rated 450V
ESR (Equivalent Series Resistance) 1.45Ohm at 120Hz
Lifetime at Temp. 2000 Hrs at 85°C
Temperature Range - Operating -25°C ~ 85°C
Polarization Polar
Applications General Purpose
Ripple Current at Low Frequency 950mA at 120Hz
Impedance 1.07 Ohms
Lead Spacing 0.394" (10.00mm)
Parts Dimension 0.866" Dia (22.00mm)
Height - Seated (Maximum) 1.260" (32.00mm)
Mounting Style Through Hole
Manufacturer Package Radial, Can - Snap-In
Manufacturer Pack Quantity 100
MSL Level Not Applicable
Win Source Part Number 1211758-MAL209357101E3
Manufacturer Homepage www.vishay.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian MAL209357101E3 CAD Model

Description

The Vishay BC Components 100μF Capacitor is a polarized radial, can-snap-in capacitor with a rated voltage of 450V.

  • Capacitance: 100μF
  • Rated Voltage: 450V
  • Tolerance: ±20%
  • Impedance: 1.07 Ohms
  • ESR: 1.45Ohm @ 120Hz
  • Ripple Current: 950mA @ low frequency
  • Lifetime: 2000 hours @ 85°C
  • Application: Suitable for general-purpose applications
  • Lead Spacing: 0.394" (10.00mm)
  • Height: 1.260" (32.00mm)
  • Packaging: Tape & box packaging
  • Popularity: Medium popularity in the market
  • MSL Level: Not applicable
