Same model may have multiple batches, images only for reference.

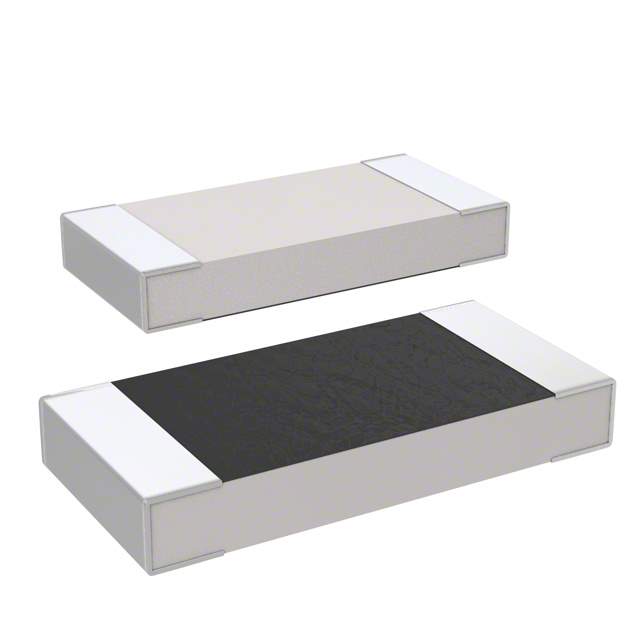

M55342K03B7B06RT1 Real Image
Same model may have multiple batches, images only for reference.

M55342K03B7B06RT1

Part No M55342K03B7B06RT1
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES SMD 7.06K OHM 0.1% 1/5W 1005
Datasheet
M55342K03B7B06RT1 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Manufacturer Vishay
Packaging Reel - TR
Status Active
Resistance (Ohms) 7.06k
Tolerance ±0.1%
Power (Watts) 0.2W, 1/5W
Composition Thin Film
Features Military, Non-Inductive
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C to 150°C
Case / Package 1005
Height - Seated (Max) 0.033" (0.84mm)
Number of Terminations 2
Failure Rate R (0.01%)
Win Source Part Number 1050159-M55342K03B7B06RT1
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian M55342K03B7B06RT1 CAD Model

Description

The Vishay M55342K03B7B06RT1 is a thin film resistor.

  • Package: 1005
  • Resistance: 7.06k ohms
  • Tolerance: ±0.1%
  • Power Rating: 0.2W
  • Temperature Coefficient: ±100ppm/°C
  • Suitable For: use in electronic devices such as computers, laptops, and other devices that require a thin film resistor to function
  • Manufacturer: Vishay
