Same model may have multiple batches, images only for reference.

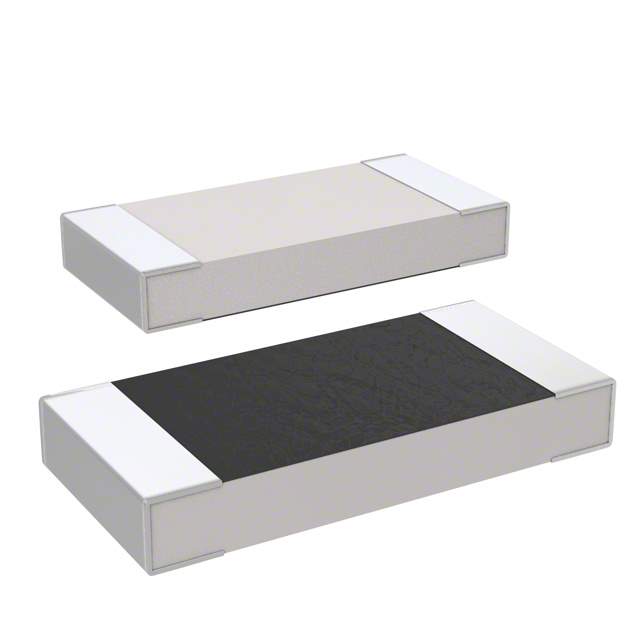

M55342K03B649ART5 Real Image
Same model may have multiple batches, images only for reference.

M55342K03B649ART5

Part No M55342K03B649ART5
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES SMD 649 OHM 0.1% 1/5W 1005 / 649 Ohms ±0.1% 0.2W, 1/5W Chip Resistor Nonstandard Military, Non-Inductive Thin Film
Datasheet
M55342K03B649ART5 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Vishay Dale Thin Film
Series Military, MIL-PRF-55342, RM1005
Package Tape & Reel (TR)
Resistance 649 Ohms
Tolerance ±0.1%
Power (Watts) 0.2W, 1/5W
Composition Thin Film
Features Military, Non-Inductive
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 150°C
Package / Case Nonstandard
Supplier Device Package 1005
Dimension 0.105" L x 0.050" W (2.67mm x 1.27mm)
Height - Seated (Max) 0.033" (0.84mm)
Number of Terminations 2
Failure Rate R (0.01%)
Base Product Number M55342
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Other Names 764-M55342K03B649ART5TR,M55342K03B649ART5-ND,M55342K03B649ART5-MIL
Standard Package 500
Win Source Part Number 1047850-M55342K03B649ART5
Ultra Librarian 3D Model Ultra Librarian M55342K03B649ART5 CAD Model

Description

The Vishay Dale Thin Film M55342K03B649ART5 is a military-grade chip resistor designed for use in surface mount applications.

  • Resistance: 649 ohms
  • Power Rating: 0.2W (1/5W)
  • Tolerance: ±0.1%
  • Temperature Coefficient: ±100ppm/°C
  • Inductive: Non-inductive
  • Failure Rate: R (0.01%)
  • Packaging: Tape & reel
  • Package Size: Nonstandard
  • Height: 0.033” (0.84mm)
  • Composition: Thin film
  • Terminations: Two
  • HTSUS: 8533.21.0030
  • MSL Level: 1 (unlimited)
  • Temperature Range: -55°C to 150°C
