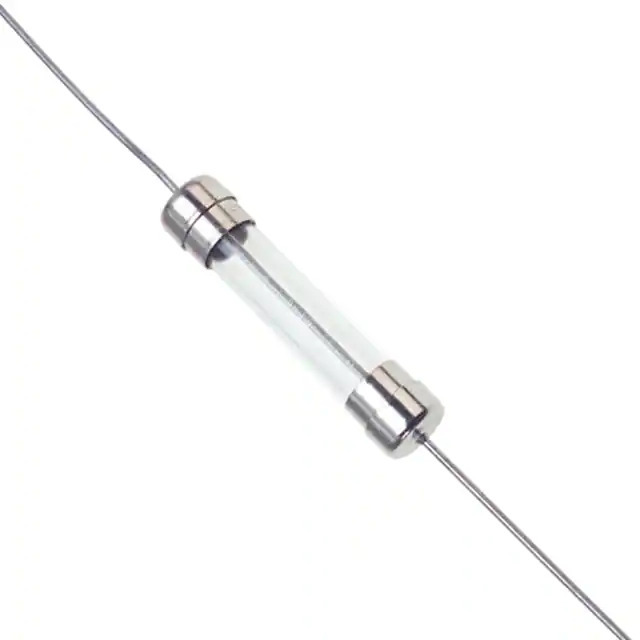

0315020.MXP Littelfuse Inc.
Same model may have multiple batches, images only for reference.

0315020.MXP

Part No 0315020.MXP
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE GLASS 20A 32VAC 3AB 3AG
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuses
Mfr Littelfuse Inc.
Series 315
Package Bulk
Product Status Active
Mounting Type Through Hole
Fuse Type Cartridge, Glass
Current Rating (Amps) 20 A
Voltage Rating - AC 32 V
Response Time Slow Blow
Package / Case 3AB, 3AG, 1/4" x 1-1/4" (Axial)
Breaking Capacity @ Rated Voltage 300A
Melting I²t 9560
Approval Agency UL
Temperature Range - Operating -55°C ~ 125°C
Color -
Size / Dimension 0.275" Dia x 1.275" L (6.99mm x 32.39mm)
DC Cold Resistance 0.0022 Ohms
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0020
Win Source Part Number 1377284-0315020.MXP
Ultra Librarian 3D Model Ultra Librarian 0315020.MXP CAD Model

Description

The Littelfuse Inc. 1377284-0315020.MXP is a 315 series cartridge glass fuse.

  • Series: 315
  • Current Rating: 20 A
  • Voltage Rating: 32 V AC
  • Response Time: Slow Blow
  • Mounting Type: Through-Hole
  • Size: 0.275" Dia x 1.275" L (6.99mm x 32.39mm)
  • Compliance: UL
  • REACH: Unaffected
