Same model may have multiple batches, images only for reference.

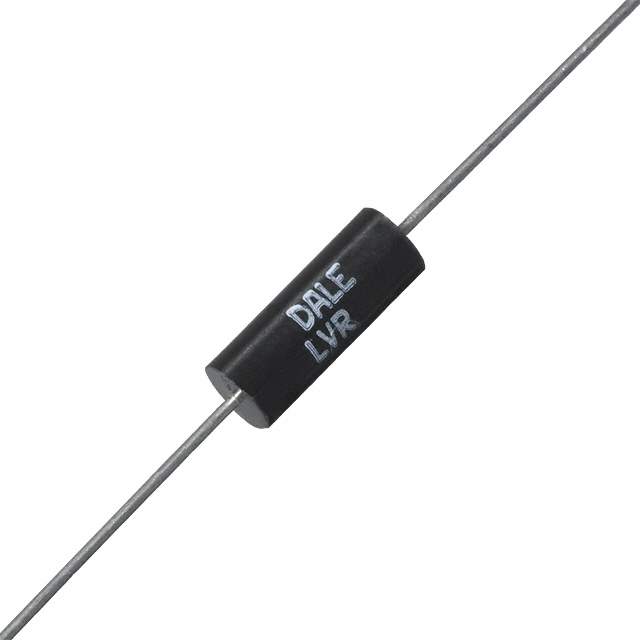

LVR03R1000FE70 Real Image
Same model may have multiple batches, images only for reference.

LVR03R1000FE70

Part No LVR03R1000FE70
Manufacturer Vishay
Catalog Through Hole Resistors
Description RES 0.1 OHM 1% 3W AXIAL WW / 100 mOhms ±1% 3W Through Hole Resistor Axial Current Sense, Moisture Resistant Wirewound
Datasheet
LVR03R1000FE70 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Through Hole Resistors
Mfr Vishay Dale
Series LVR
Package Tape & Reel (TR),Cut Tape (CT)
Product Status Obsolete
Resistance 100 mOhms
Tolerance ±1%
Power (Watts) 3W
Composition Wirewound
Features Current Sense, Moisture Resistant
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -65°C ~ 275°C
Package / Case Axial
Supplier Device Package Axial
Dimension 0.205" Dia x 0.560" L (5.21mm x 14.22mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0080
Other Names LVRB-.10RCT,LVRB-.10RTR
Standard Package 1,000
Win Source Part Number 963705-LVR03R1000FE70
Ultra Librarian 3D Model Ultra Librarian LVR03R1000FE70 CAD Model

Description

The LVR series resistor from Vishay Dale is a wirewound resistor with a resistance of 100 mOhms and a power rating of 3W.

  • Manufacturer: Vishay Dale
  • Series: LVR
  • Type: Wirewound Resistor
  • Resistance: 100 mOhms
  • Power Rating: 3W
  • Tolerance: ±1%
  • Temperature Coefficient: ±50ppm/°C
  • Package: Axial
  • Temperature Range: -65°C to 275°C
  • Application: Current Sensing
  • Feature: Moisture-resistant
  • Packaging: Tape and Reel (TR), Cut Tape (CT)
