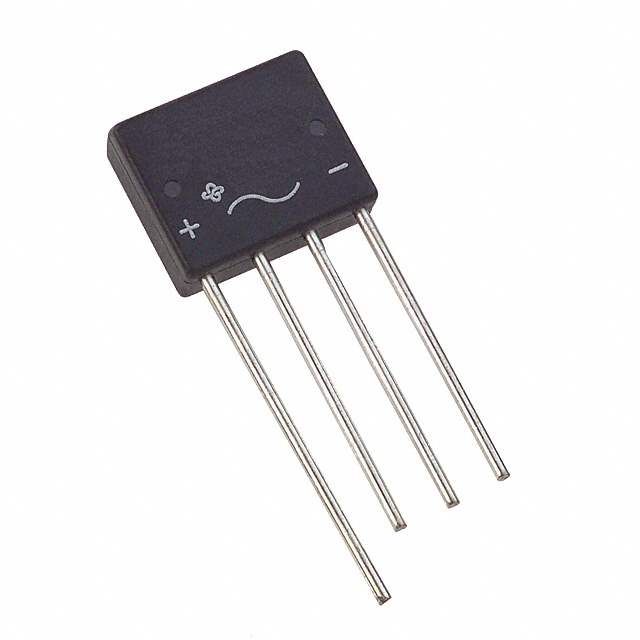

KBL08-E4/51 Real Image
Same model may have multiple batches, images only for reference.

KBL08-E4/51

Part No KBL08-E4/51
Manufacturer Vishay
Catalog Bridge Rectifiers
Description RECTIFIER BRIDGE 4A 800V KBL
Datasheet
KBL08-E4/51 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Bulk
Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 800V
Current - Average Rectified (Io) 4A
Voltage - Forward (Vf) (Max) @ If 1.1V @ 4A
Current - Reverse Leakage @ Vr 5μA @ 800V
Temperature Range - Operating -50°C to 150°C (TJ)
Mounting Through Hole
Case / Package KBL
Win Source Part Number 040939-KBL08-E4/51
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian KBL08-E4/51 CAD Model

Description

The Vishay 040939-KBL08-E4/51 is a high-quality and reliable component for discrete semiconductor products.

  • Popularity: medium
  • Supply and Demand Status: limited
  • Win Source Part Number: ensures that you're getting a genuine product
  • Current - Average Rectified (Io): 4A
  • Voltage - Forward (Vf) (Max) @ If: 1.1V @ 4A
  • Current - Reverse Leakage @ Vr: 5μA @ 800V
  • Voltage - Peak Reverse (Max): 800V
  • Temperature Range - Operating: -50°C to 150°C (TJ)
  • Case / Package: KBL
