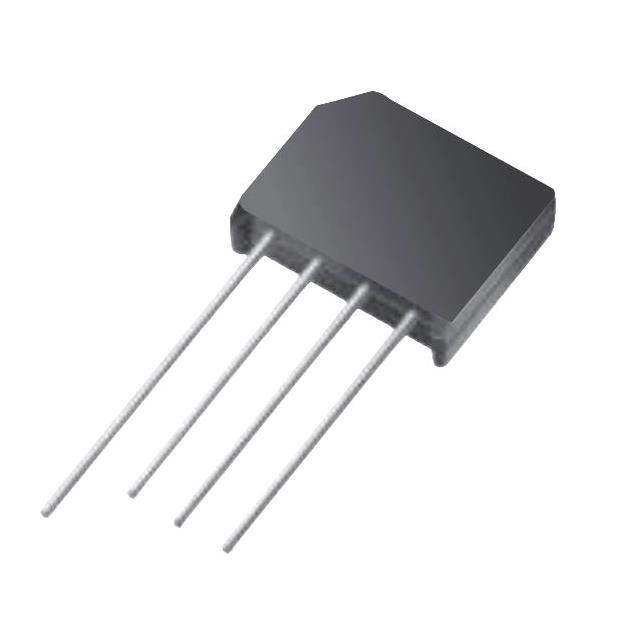

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Bulk
Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 600V
Current - Average Rectified (Io) 4A
Voltage - Forward (Vf) (Max) @ If 1.1V @ 4A
Current - Reverse Leakage @ Vr 5μA @ 600V
Temperature Range - Operating -50°C to 150°C (TJ)
Mounting Through Hole
Case / Package KBL
Win Source Part Number 002129-KBL06-E4/51
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Power Management, Consumer Electronics, Audio
Ultra Librarian 3D Model Ultra Librarian KBL06-E4/51 CAD Model

Description

The Vishay KBL06-E4/51 is a single-phase standard technology diode with a KBL package type.

  • Current-Average Rectified (Io): 4A
  • Voltage-Forward (Vf) (Max): 1.1V @ 4A
  • Current-Reverse Leakage @ Vr: 5μA @ 600V
  • Voltage-Peak Reverse (Max): 600V
  • Suitable for: use in power management, consumer electronics, and audio applications
  • ROHS3 compliant: true
  • Popularity: medium
  • Supply and Demand Status: limited
