Same model may have multiple batches, images only for reference.

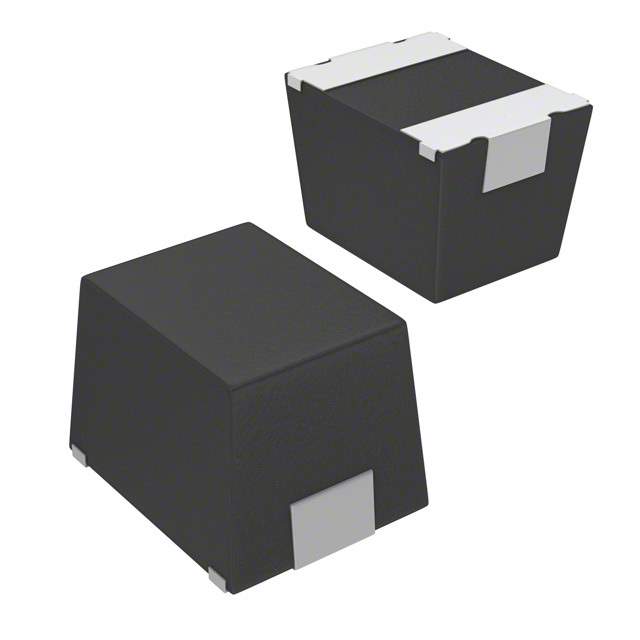

ISC1210ER390K Real Image
Same model may have multiple batches, images only for reference.

ISC1210ER390K

Part No ISC1210ER390K
Manufacturer Vishay
Catalog Fixed Inductors
Description FIXED IND 39UH 105MA 5.9 OHM SMD / 39 µH Shielded Drum Core, Wirewound Inductor 105 mA 5.9Ohm Max 1210 (3225 Metric)
Datasheet
ISC1210ER390K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Vishay Dale
Packaging Reel - TR
Type Drum Core, Wirewound
Material - Core Iron Powder
Inductance 39 µH
Tolerance ±10%
Current Rating (Amps) 105 mA
Shielding Shielded
DC Resistance (DCR) 5.9Ohm Max
Q @ Freq 30 @ 2.52MHz
Frequency - Self Resonant 14MHz
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 2.52 MHz
Mounting Surface Mount
Case / Package 1210 (3225 Metric)
Supplier Device Package 1210
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.49mm)
Height - Seated (Max) 0.095" (2.41mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Standard Package 2,000
Win Source Part Number 1327390-ISC1210ER390K
Ultra Librarian 3D Model Ultra Librarian ISC1210ER390K CAD Model

Description

The ISC1210ER390K is an electronic component manufactured by Vishay Dale.

  • Type: Drum core, wirewound
  • Shielding: Shielded
  • Size/Dimension: 0.126" L x 0.098" W (3.20mm x 2.49mm)
  • Inductance: 39 µH
  • Q @ Freq: 30 @ 2.52MHz
  • Frequency Self-Resonant: 14MHz
  • DC Resistance (DCR): 5.9Ohm Max
  • Current Rating (Amps): 105mA
