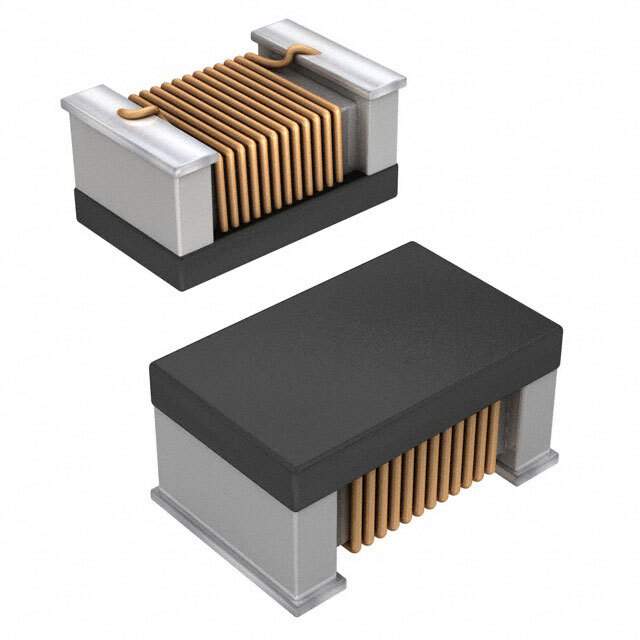

The IMC0805ER82NJ01 is a wirewound chip inductor manufactured by Vishay. It's designed for high-frequency applications where precision inductance and high Q-factor are required.

Applications:

• RF circuits
• Wireless communication devices
• Matching networks
• Filtering circuits
• Oscillators

Features:

• Inductance: 82 nH
• Tolerance: ±5%
• Self-Resonant Frequency (SRF): High SRF, suitable for high-frequency applications.
• Q-Factor: High Q-factor for efficient signal transmission.
• DC Resistance (DCR): Low DCR for minimal power loss.
• Case Size: 0805 (EIA), small surface-mount package.
• Operating Temperature: Wide operating temperature range for reliable performance.

Benefits:

• High Performance: High Q-factor and SRF ensure excellent performance in RF circuits.
• Precise Inductance: Tight tolerance ensures accurate circuit tuning.
• Low Losses: Low DCR minimizes power loss.
• Compact Size: 0805 package allows for dense board layouts.
• Reliability: Robust construction ensures reliable operation in demanding environments.

The IMC0805ER82NJ01 is ideal for applications requiring precise inductance and high performance at high frequencies. Its wirewound construction provides a high Q-factor and low DCR, making it suitable for sensitive RF circuits. The small 0805 package allows for dense board layouts, while the wide operating temperature range ensures reliable operation in various environments.

Note: Refer to the Vishay datasheet for complete specifications, performance curves, and application guidelines.
