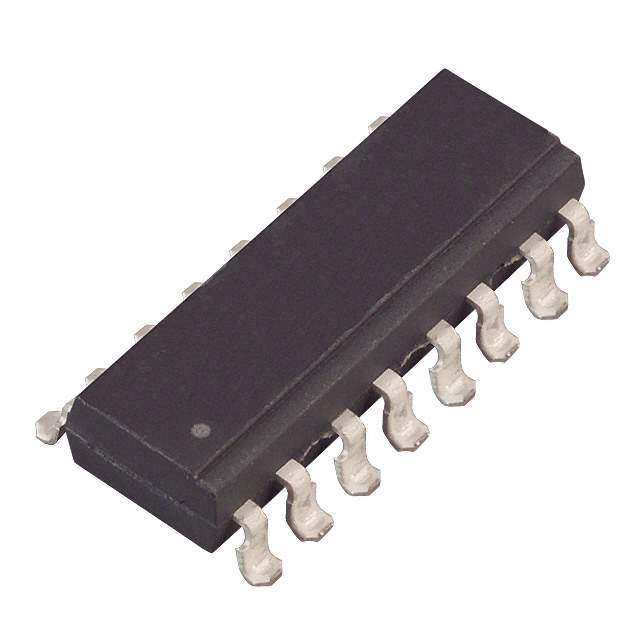

ILQ2-X009 Real Image
Same model may have multiple batches, images only for reference.

ILQ2-X009

Part No ILQ2-X009
Manufacturer Vishay
Catalog Optoisolators - Transistor, Photovoltaic Output
Description Optocoupler, Phototransistor Output (Dual, Quad Channel) | OPTOISO 5.3KV 4CH TRANS 16SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Vishay Semiconductor Opto Division
Packaging Tube
Number of Channels 4
Voltage - Isolation 5300Vrms
Current Transfer Ratio (Minimum) 100% at 10mA
Current Transfer Ratio (Maximum) 500% at 10mA
Turn On / Turn Off Time 1.2μs, 2.3μs
Rise / Fall Time 2.6μs, 2.2μs
Input Type DC
Output Type Transistor
Maximum Output Voltage 70V
Current - Output / Channel 50mA
Voltage - Forward (Vf) 1.25V
Current - DC Forward (If) (Maximum) 60mA
Vce Saturation (Maximum) 400mV
Temperature Range - Operating -40°C ~ 100°C
Mounting Style SMD
Manufacturer Package 16-SMD, Gull Wing
Supplier Device Package 16-SMD
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Win Source Part Number 1185511-ILQ2-X009
Manufacturer Homepage www.vishay.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian ILQ2-X009 CAD Model

Description

The ILQ2-X009 is a quad-channel optocoupler from Vishay Semiconductor Opto Division.

  • Maximum Output Voltage: 70V
  • Voltage Isolation: 5300Vrms
  • Package: 16-SMD
  • Current Transfer Ratio: 100% @ 10mA (minimum) and 500% @ 10mA (maximum)
  • Popularity: low
  • Supply and Demand Status: limited
