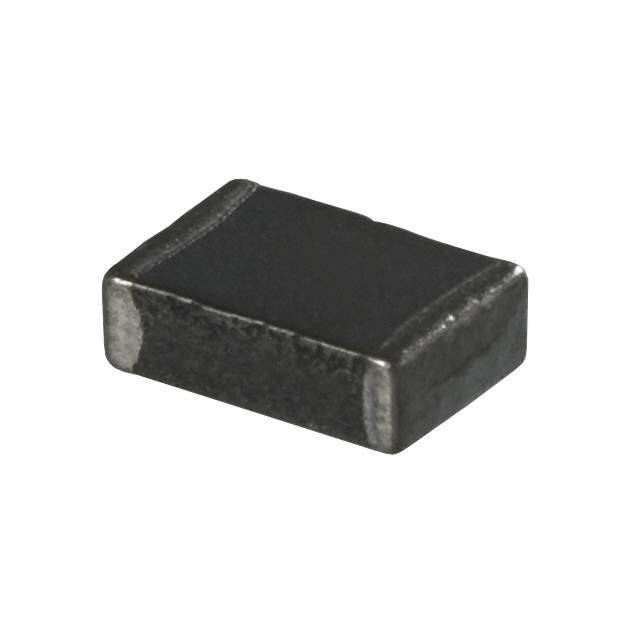

ILHB1812ER132V Real Image
Same model may have multiple batches, images only for reference.

ILHB1812ER132V

Part No ILHB1812ER132V
Manufacturer Vishay
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 1.3 KOHM 1812 1LN / 1.3 kOhms @ 100 MHz 1 Ferrite Bead 1812 (4532 Metric) 3A 50mOhm
Datasheet
ILHB1812ER132V Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Ferrite Beads and Chips
Manufacturer Vishay Dale
Packaging Reel - TR
Number of Lines 1
Impedance @ Frequency 1.3 kOhms @ 100 MHz
Current Rating (Max) 3A
DC Resistance (DCR) (Max) 50mOhm
Temperature Range - Operating -55°C ~ 125°C
Case / Package 1812 (4532 Metric)
Mounting Surface Mount
Height (Max) 0.069" (1.75mm)
Size / Dimension 0.177" L x 0.126" W (4.50mm x 3.20mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Other Part Number 541-4367-2,541-4367-6,ILHB1812ER132V-ND,541-4367-1
Standard Package 1,000
Win Source Part Number 1328057-ILHB1812ER132V
Ultra Librarian 3D Model Ultra Librarian ILHB1812ER132V CAD Model

Description

The Vishay Dale ILHB1812ER132V is a ferrite bead designed for use in filters. It has a current rating of 3A and an impedance of 1.3 kOhms at a frequency of 100 MHz. The bead has a DC resistance of 50mOhm and is mounted using surface mount technology. It comes in a 1812 (4532 Metric) package and is supplied in reel packaging. The operating temperature range of the bead is -55°C to 125°C. The ILHB1812ER132V is part of the Filters>Ferrite Beads and Chips category and is compliant with EAR99 and ROHS3.
