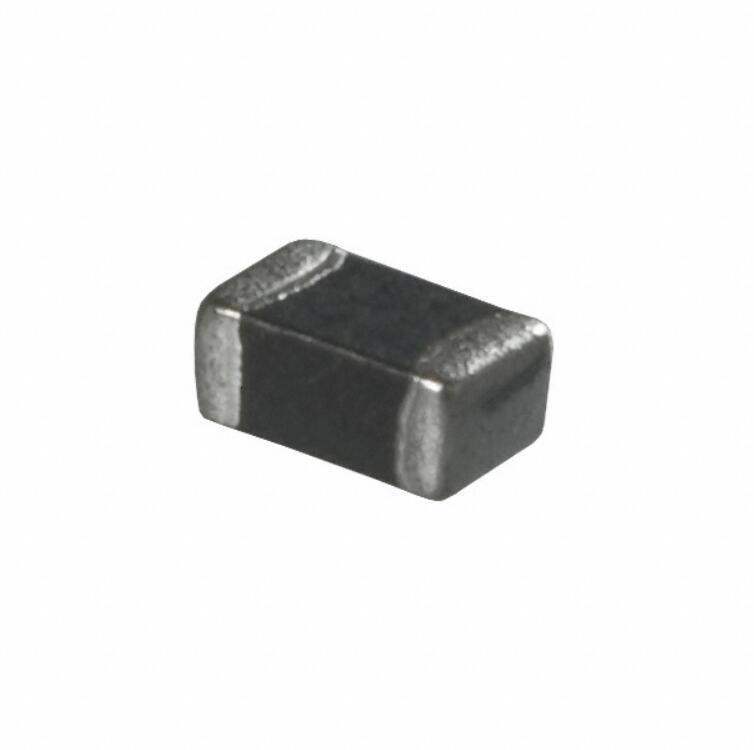

ILBB0805ER202VVishay Dale
Same model may have multiple batches, images only for reference.

ILBB0805ER202V

Part No ILBB0805ER202V
Manufacturer Vishay
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 2K OHM 0805 1LN
Datasheet
ILBB0805ER202V Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1202647-ILBB0805ER202V
Win Source Part Number Cross
Manufacturer Vishay Dale
Category Filters Ferrite Beads and Chips
Series ILBB-0805
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Active
Impedance @ Frequency 2 kOhms @ 100 MHz
Current Rating (Max) 80mA
DC Resistance (DCR) (Max) 500mOhm
Operating Temperature -55°C ~ 125°C
Ultra Librarian 3D Model Ultra Librarian ILBB0805ER202V CAD Model

Description

Vishay Dale presents the 1202647 ferrite bead and chip filter from the ILBB-0805 series.

  • Series: ILBB-0805
  • Maximum Current Rating: 80mA
  • Impedance: 2 kilohms @ 100 MHz
  • DC Resistance (DCR): Maximum 500mOhm
  • Temperature Range: -55°C to 125°C
  • Status: Active
