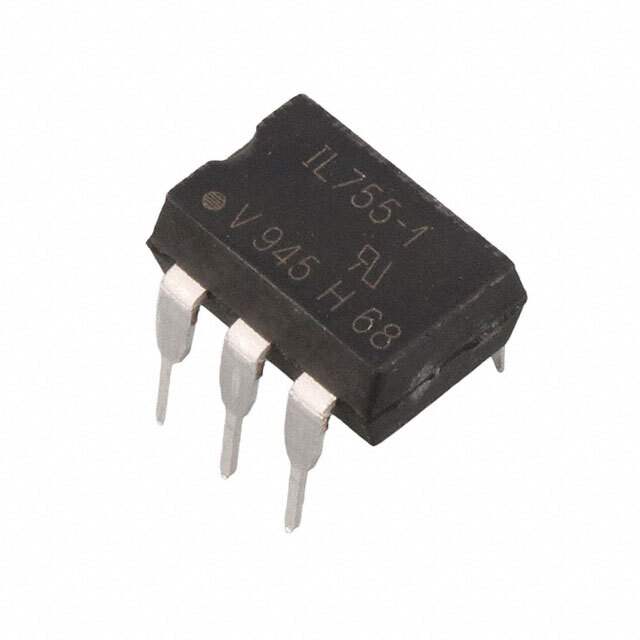

IL755-1 Real Image
Same model may have multiple batches, images only for reference.

IL755-1

Part No IL755-1
Manufacturer Vishay
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 5.3KV DARL W/BASE 6DIP
Datasheet
IL755-1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Vishay
Packaging Tube/Rail
Status Active
Number of Channels 1
Isolation Voltage 5300Vrms
Minimum DC Current Transfer Ratio 750% @ 2mA
Rise and Fall Time 50μs, 50μs
Input Type AC, DC
Output Type Darlington with Base
Maximum Output Voltage 60V
Forward Voltage 1.2V
Continuous forward current- Max 60mA
Vce Saturation (Max) 1V
Temperature Range - Operating -55°C to 100°C
Mounting Through Hole
Case / Package 6-DIP
Win Source Part Number 083927-IL755-1
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian IL755-1 CAD Model

Description

The Vishay 083927-IL755-1 is an optoisolator with a Darlington and base output.

  • Manufacturer: Vishay
  • Product Name: 083927-IL755-1
  • Output Type: Darlington and base
  • Mounting Type: Through-hole
  • Package: 6-DIP
  • Input Type: AC, DC
  • Number of Channels: 1
  • Isolation Voltage: 5300Vrms
  • Minimum DC Current Transfer Ratio: 750% @ 2mA
  • Switching Turn-On Time: Not Specified
  • Switching Turn-Off Time: Not Specified
  • Rise Time: Not Specified
  • Fall Time: Not Specified
  • Maximum Output Voltage: 60V
  • Continuous Forward Current-Max: 60mA
  • Popularity: High
