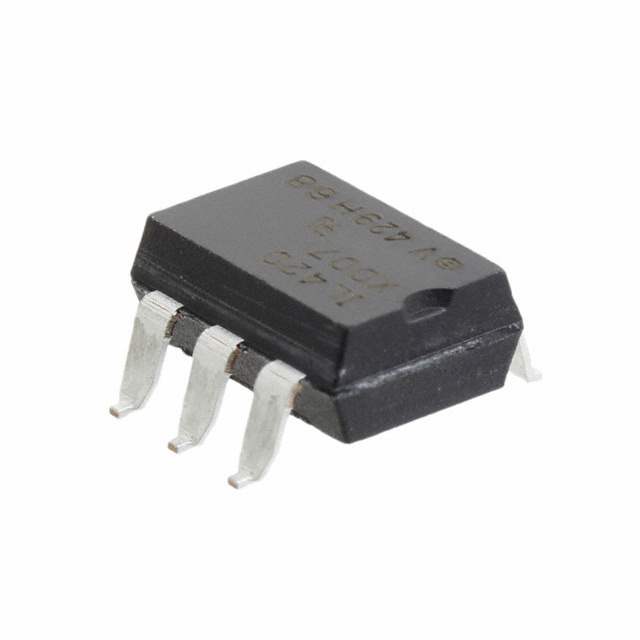

IL420-X009 Real Image
Same model may have multiple batches, images only for reference.

IL420-X009

Part No IL420-X009
Manufacturer Vishay
Catalog Optoisolators - Triac, SCR Output
Description OPTOISOLATOR 5.3KV TRIAC
Datasheet
IL420-X009 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Vishay
Packaging Reel - TR
Status Active
Output Type Triac
Zero Crossing Circuit No
Number of Channels 1
Isolation Voltage 5300Vrms
Voltage - Off State 600V
Static dV/dt (Min) 10kV/μs
Current - LED Trigger (Ift) (Max) 2mA
Current - On State (It (RMS)) (Max) 300mA
Current - Hold (Ih) 500μA
Turn On Time 35μs
Forward Voltage 1.16V
Continuous forward current- Max 60mA
Temperature Range - Operating -55°C to 100°C
Mounting SMD (SMT)
Case / Package 6-SMD
Approvals CQC, CSA, cUR, UR
Win Source Part Number 133531-IL420-X009
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian IL420-X009 CAD Model

Description

The electronic component with id 163677 is a Vishay product with part number 133531-IL420-X009. This product has a reel - TR packaging and is approved by CQC, CSA, cUR, and UR.

  • Packaging: Reel - TR
  • Approvals: CQC, CSA, cUR, and UR
  • Mounting: SMD (SMT)
  • Output Type: Triac
  • Forward Voltage: 1.16V
  • Voltage-Off State: 600V
  • Maximum Current On State: 300mA
  • Channel: One
  • Isolation Voltage: 5300Vrms
  • Current Hold: 500μA
  • Zero-Crossing Circuit: No
  • Static dV/dt: 10kV/μs
  • Maximum Current LED Trigger: 2mA
  • Turn On Time: 35μs

It falls under the category of isolators. The supply and demand status is limited.
