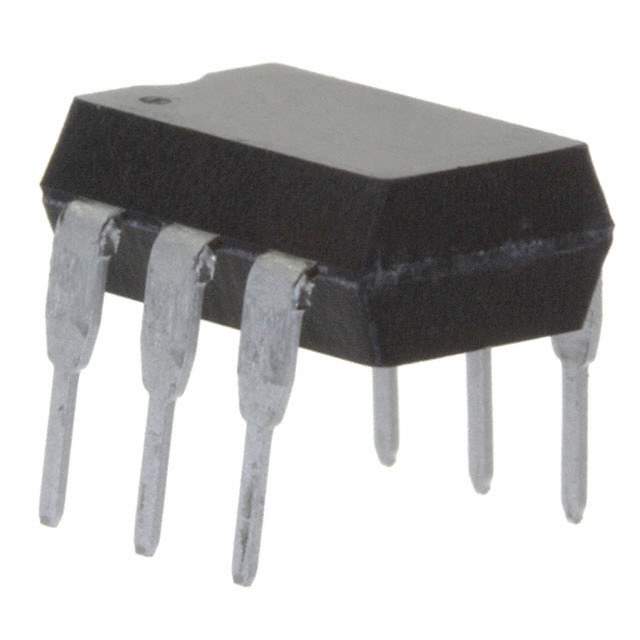

IL1 Real Image
Same model may have multiple batches, images only for reference.

IL1

Part No IL1
Manufacturer Vishay
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 5.3KV TRANS W/BASE 6DIP / Optoisolator Transistor with Base Output 5300Vrms 1 Channel 6-DIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Optoisolators - Transistor, Photovoltaic Output
Manufacturer Vishay Semiconductor Opto Division
Packaging Tube
Product Status Obsolete
Number of Channels 1
Voltage - Isolation 5300Vrms
Current Transfer Ratio (Min) 20% @ 10mA
Current Transfer Ratio (Max) 300% @ 10mA
Turn On / Turn Off Time (Typ) 700ns, 1.4µs
Rise / Fall Time (Typ) 1.9µs, 1.4µs
Input Type DC
Output Type Transistor with Base
Voltage - Output (Max) 50V
Current - Output / Channel 50mA
Voltage - Forward (Vf) (Typ) 1.25V
Current - DC Forward (If) (Max) 60 mA
Vce Saturation (Max) 250mV (Typ)
Temperature Range - Operating -40°C ~ 100°C
Mounting Through Hole
Case / Package 6-DIP (0.300", 7.62mm)
Supplier Device Package 6-DIP
Base Product Number IL1
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.8000
Other Part Number IL1GI-ND,751-1280-5,IL1GI
Standard Package 2,000
Win Source Part Number 1331795-IL1
Ultra Librarian 3D Model Ultra Librarian IL1 CAD Model

Description

The IL1 is an optoisolator from the transistor, photovoltaic output category of Vishay Semiconductor Opto Division.

  • Current Transfer Ratio: 20% @ 10mA to 300%
  • Input Type: DC
  • Output Type: Transistor with Base
  • Voltage Isolation: 5300Vrms
  • Maximum Output Voltage: 50V
  • Maximum Forward Current: 60mA
  • Typical Forward Voltage: 1.25V
  • Mounting: Through-Hole
  • Package: 6-DIP (0.300", 7.62mm)
  • Operating Temperature: -40°C to 100°C
  • Status: Obsolete
  • ECCN: EAR99
