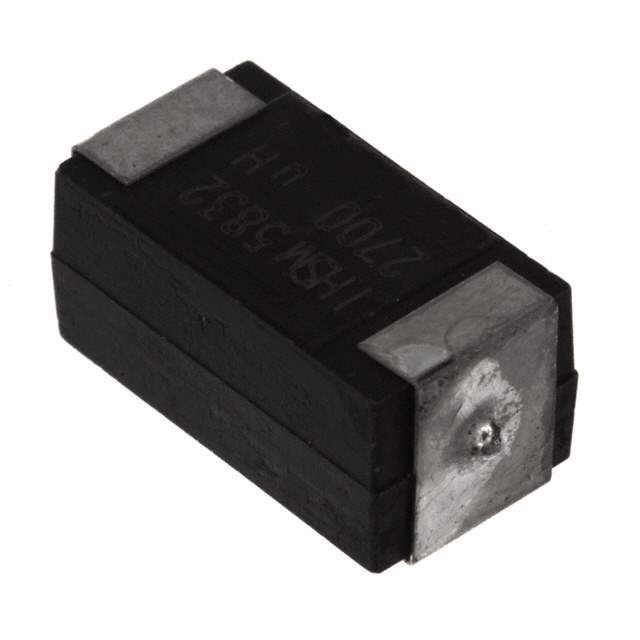

IHSM5832ER2R2L Real Image
Same model may have multiple batches, images only for reference.

IHSM5832ER2R2L

Part No IHSM5832ER2R2L
Manufacturer Vishay
Catalog Fixed Inductors
Description FIXED IND 2.2UH 8.5A 15 MOHM SMD / 2.2 µH Unshielded Inductor 8.5 A 15mOhm Max Nonstandard
Datasheet
IHSM5832ER2R2L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Vishay Dale
Series IHSM-5832
Package Tape & Reel
Material - Core Ferrite
Inductance 2.2 µH
Tolerance ±15%
Current Rating (Amps) 8.5 A
Current - Saturation (Isat) 4A
Shielding Unshielded
DC Resistance (DCR) 15mOhm Max
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.640" L x 0.320" W (16.26mm x 8.13mm)
Height - Seated (Max) 0.285" (7.24mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names 541-1562-1,541-1562-6,541-1562-2,IHSM5832ER2R2L-ND
Standard Package 500
Win Source Part Number 971905-IHSM5832ER2R2L
Ultra Librarian 3D Model Ultra Librarian IHSM5832ER2R2L CAD Model

Description

Vishay Dale offers a fixed inductor with the Win Source Part Number 971905-IHSM5832ER2R2L. The product belongs to the category of inductors, coils, chokes and has a current rating of 8.5 A.

  • Manufacturer: Vishay Dale
  • Win Source Part Number: 971905-IHSM5832ER2R2L
  • Product Category: Inductors, Coils, Chokes
  • Inductor Type: Fixed
  • Current Rating: 8.5 A
  • Package: Tape and Reel
  • RoHS Compliant: Yes
  • Temperature Range: -55°C to 125°C
