Same model may have multiple batches, images only for reference.

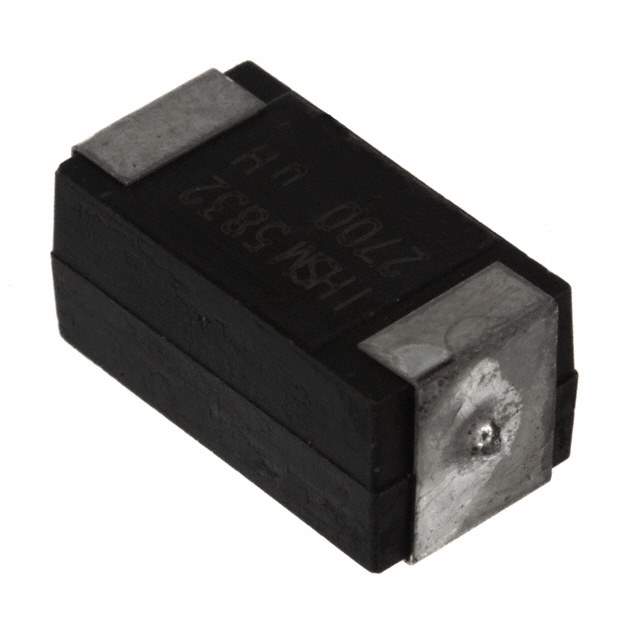

IHSM4825ER3R3L Real Image
Same model may have multiple batches, images only for reference.

IHSM4825ER3R3L

Part No IHSM4825ER3R3L
Manufacturer Vishay
Catalog Fixed Inductors
Description FIXED IND 3.3UH 4.6A 38 MOHM SMD / 3.3 µH Unshielded Inductor 4.6 A 38mOhm Max Nonstandard
Datasheet
IHSM4825ER3R3L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Vishay Dale
Series IHSM-4825
Package Tape & Reel
Material - Core Ferrite
Inductance 3.3 µH
Tolerance ±15%
Current Rating (Amps) 4.6 A
Current - Saturation (Isat) 2.4A
Shielding Unshielded
DC Resistance (DCR) 38mOhm Max
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.540" L x 0.250" W (13.72mm x 6.35mm)
Height - Seated (Max) 0.225" (5.72mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names 541-1628-1,541-1628-2,541-1628-6,IHSM4825ER3R3L-ND
Standard Package 750
Win Source Part Number 1187029-IHSM4825ER3R3L
Ultra Librarian 3D Model Ultra Librarian IHSM4825ER3R3L CAD Model

Description

The Vishay Dale 1187029-IHSM4825ER3R3L is a fixed inductor that is perfect for your inductor, coil, and choke projects.

  • Inductance: 3.3 µH
  • Tolerance: ±15%
  • Package: Tape & reel
  • Shielded: Unshielded
  • Height - Seated (Max): 0.225" (5.72mm)
  • Standard Package: 750
  • Mounting: SMD (SMT)
  • Material - Core: Ferrite
  • DC Resistance (DCR): 38mOhm Max
  • Temperature Range: -55°C ~ 125°C
  • ECCN: EAR99 compliant
  • HTSUS: 8504.50.4000
