Same model may have multiple batches, images only for reference.

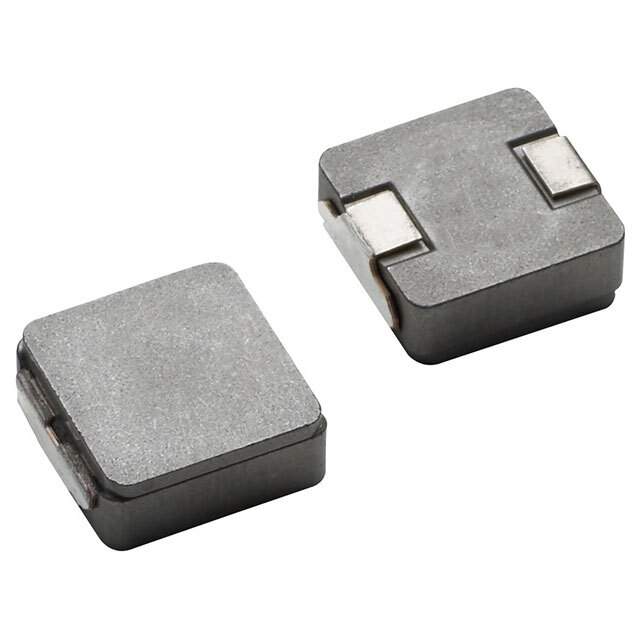

IHLP4040DZER900K5A Real Image
Same model may have multiple batches, images only for reference.

IHLP4040DZER900K5A

Part No IHLP4040DZER900K5A
Manufacturer Vishay
Catalog Fixed Inductors
Description IHLP-4040DZ-5A 90 10% ER E3 / 90 µH Shielded Inductor 2.5 A 178mOhm Max Nonstandard
Datasheet
IHLP4040DZER900K5A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Vishay Dale
Series IHLP-4040DZ-5A
Package Tape & Reel
Material - Core Metal Composite
Inductance 90 µH
Tolerance ±10%
Current Rating (Amps) 2.5 A
Current - Saturation (Isat) 4.5A
Shielding Shielded
DC Resistance (DCR) 178mOhm Max
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 155°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.425" L x 0.400" W (10.80mm x 10.16mm)
Height - Seated (Max) 0.157" (4.00mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Names 541-IHLP4040DZER900K5ACT,541-IHLP4040DZER900K5ADKR,541-IHLP4040DZER900K5ATR
Standard Package 500
Win Source Part Number 1008641-IHLP4040DZER900K5A
Ultra Librarian 3D Model Ultra Librarian IHLP4040DZER900K5A CAD Model

Description

The Vishay Dale fixed inductor is a high-quality component designed for use in various applications.

  • Shielding: shielding feature
  • Inductance: 90 µH
  • Tolerance: ±10%
  • DCR: 178mOhm Max
  • Mounting: surface-mounted
  • Dimension: 0.425" L x 0.400" W (10.80mm x 10.16mm)
  • Operating Temperature: -55°C ~ 155°C
  • Current Rating: 2.5 A
  • Inductance Frequency: 100 kHz
  • Supply and demand status: balanced
