Same model may have multiple batches, images only for reference.

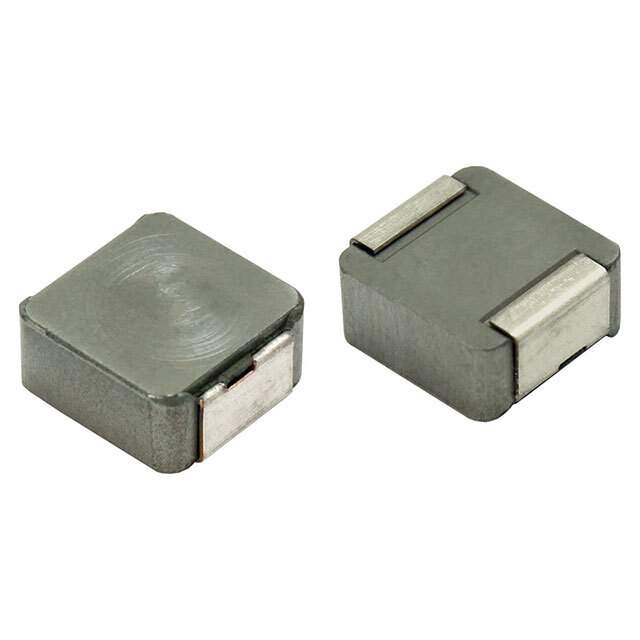

IHLP3232DZER1R0MA1 Real Image
Same model may have multiple batches, images only for reference.

IHLP3232DZER1R0MA1

Part No IHLP3232DZER1R0MA1
Manufacturer Vishay
Catalog Fixed Inductors
Description IHLP-3232DZ-A1 1 20% ER E3 / 1 µH Shielded Inductor 18 A 5.78mOhm Max Nonstandard
Datasheet
IHLP3232DZER1R0MA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Vishay Dale
Series IHLP-3232DZ-A1
Package Tape & Reel
Material - Core Metal Composite
Inductance 1 µH
Tolerance ±20%
Current Rating (Amps) 18 A
Current - Saturation (Isat) 24A
Shielding Shielded
DC Resistance (DCR) 5.78mOhm Max
Frequency - Self Resonant 42MHz
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.340" L x 0.322" W (8.64mm x 8.18mm)
Height - Seated (Max) 0.157" (4.00mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Names 541-IHLP3232DZER1R0MA1DKR,541-IHLP3232DZER1R0MA1TR,541-IHLP3232DZER1R0MA1CT
Standard Package 500
Win Source Part Number 1125217-IHLP3232DZER1R0MA1
Ultra Librarian 3D Model Ultra Librarian IHLP3232DZER1R0MA1 CAD Model

Description

The IHLP3232DZER1R0MA1 is a fixed inductor designed for use in a variety of applications from Vishay.

  • Inductance: 1μH
  • Tolerance: ±20%
  • Maximum Current Rating: 18A
  • DC Resistance (DCR): 5.78mOhm Max
  • Mounting: surface mount device
  • Case/Package: nonstandard
  • Shielded: true
  • Popularity Rating: medium
  • Supply and Demand Status: balanced
