Same model may have multiple batches, images only for reference.

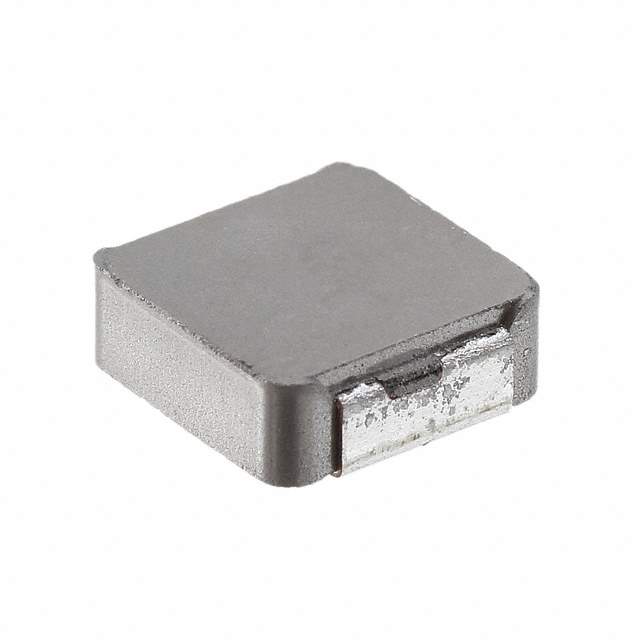

IHLP3232CZER6R8M11 Real Image
Same model may have multiple batches, images only for reference.

IHLP3232CZER6R8M11

Part No IHLP3232CZER6R8M11
Manufacturer Vishay
Catalog Fixed Inductors
Description FIXED IND 6.8UH 6.5A 37.8MOHM SM / 6.8 µH Shielded Molded Inductor 6.5 A 37.8mOhm Max Nonstandard
Datasheet
IHLP3232CZER6R8M11 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Vishay Dale
Packaging Reel - TR
Type Molded
Inductance 6.8 µH
Tolerance ±20%
Current Rating (Amps) 6.5 A
Current - Saturation (Isat) 5A
Shielding Shielded
DC Resistance (DCR) 37.8mOhm Max
Frequency - Self Resonant 17MHz
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Surface Mount
Case / Package Nonstandard
Size / Dimension 0.340" L x 0.322" W (8.64mm x 8.18mm)
Height - Seated (Max) 0.118" (3.00mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number IHLP3232CZER6R8M11-ND,541-4350-1,541-4350-2,541-4350-6
Standard Package 1,000
Win Source Part Number 1327445-IHLP3232CZER6R8M11
Ultra Librarian 3D Model Ultra Librarian IHLP3232CZER6R8M11 CAD Model

Description

The Vishay Dale IHLP3232CZER6R8M11 is a molded, shielded fixed inductor designed for surface mount applications.

  • Inductance: 6.8 µH
  • Current Rating: 6.5 A
  • DC Resistance: 37.8mOhm Max
  • Frequency Self-Resonant: 17MHz
  • Operating Temperature: -55°C to 125°C
  • Packaging: Reel
  • Tolerance: ±20%
  • Case/Package: Non-standard
  • ROHS3 Compliant: Yes
