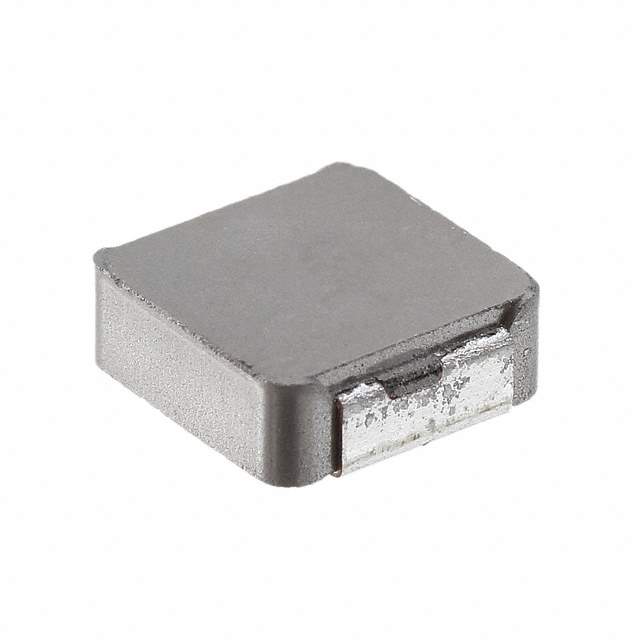

Same model may have multiple batches, images only for reference.

IHLP3232CZER4R7M01

Name: IHLP3232CZER4R7M01
Brand: Vishay
SKU: 776707
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	IHLP3232CZER4R7M01
Manufacturer	Vishay
Catalog	Fixed Inductors
Description	FIXED IND 4.7UH 6.6A 34.2 MOHM / Inductor Power Shielded Wirewound 4.7uH 20% 100KHz Powdered Iron 6.6A 0.0342Ohm DCR 3232 T/R
Datasheet	IHLP3232CZER4R7M01 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	Vishay Dale
Series	IHLP-3232CZ-01
Packaging	Reel package
Type	Molded
Inductance	4.7μH
Tolerance	±20%
Current Rating	6.6A
Current - Saturation	10.5A
Shielding	Shielded
DC Resistance (DCR)	34.2 mOhm Max
Frequency - Self Resonant	25MHz
Operating Temperature Range	-55°C ~ 125°C
Test Frequency	100kHz
Mounting	SMD
Package	Nonstandard
Dimension	0.340" L x 0.322" W (8.64mm x 8.18mm)
Height - Seated (Maximum)	0.118" (3.00mm)
Win Source Part Number	776707-IHLP3232CZER4R7M01
Popularity	Medium
Supply and Demand Status	Limited
Quantity per package	1k pcs
Family Name	IHLP-3232CZ-01
Introduction Date	July 28, 2011
ECCN	EAR99
Country of Origin	China, Israel, United States of America
Halogen Free	Compliant
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian IHLP3232CZER4R7M01 CAD Model

Alternative Products

Description

The IHLP3232CZER4R7M01 is a shielded molded inductor from Vishay Dale that comes in a non-standard package.

Series: IHLP-3232CZ-01
Inductance: 4.7μH
Current Rating: 6.6A
Current-Saturation: 10.5A
Q @ Freq: -
Frequency-Self Resonant: 25MHz
DC Resistance (DCR): 34.2 mOhm max
Tolerance: ±20%
Dimension: 0.340" L x 0.322" W (8.64mm x 8.18mm)
Height-Seated (Maximum): 0.118" (3.00mm)
Operating Temperature Range: -55°C to 125°C
Applications: Inductors, coils, and chokes
