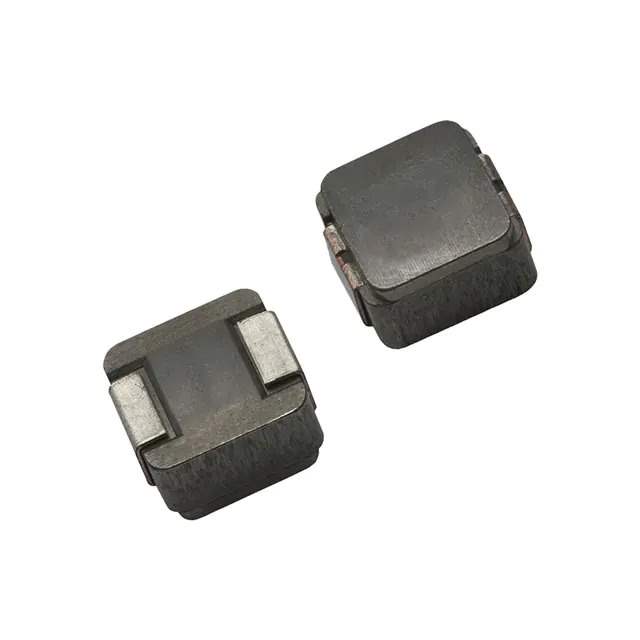

IHLP2020CZER1R0MA1 Real Image
Same model may have multiple batches, images only for reference.

IHLP2020CZER1R0MA1

Part No IHLP2020CZER1R0MA1
Manufacturer Vishay
Catalog Fixed Inductors
Description IHLP-2020CZ-A1 1 20% ER E3
Datasheet
IHLP2020CZER1R0MA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Vishay
Series IHLP-2020CZ-A1
Package Tape & Reel
Product Status Active
Material - Core Metal Composite
Inductance 1 µH
Tolerance ±20%
Current Rating (Amps) 9.2 A
Current - Saturation (Isat) 12A
Shielding Shielded
DC Resistance (DCR) 13.7mOhm Max
Frequency - Self Resonant 59MHz
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.216" L x 0.204" W (5.49mm x 5.18mm)
Height - Seated (Max) 0.118" (3.00mm)
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 825724-IHLP2020CZER1R0MA1
Ultra Librarian 3D Model Ultra Librarian IHLP2020CZER1R0MA1 CAD Model

Description

The Vishay IHLP2020CZER1R0MA1 is a surface mount fixed inductor.

  • Category: Inductors, Coils, and Chokes
  • Series: IHLP-2020CZ-A1
  • Size: 0.216" L x 0.204" W (5.49mm x 5.18mm)
  • Shielded: Yes
  • Package: Tape & Reel
  • Inductance: 1µH
  • Tolerance: ±20%
  • Maximum Seated Height: 0.118" (3.00mm)
  • Temperature Range: -55°C to 125°C
  • Current Rating: 9.2A
  • DC Resistance (DCR): 13.7mOhm max
  • Applications: Automotive
  • Standard: AEC-Q200
  • Manufacturer: Vishay
