Same model may have multiple batches, images only for reference.

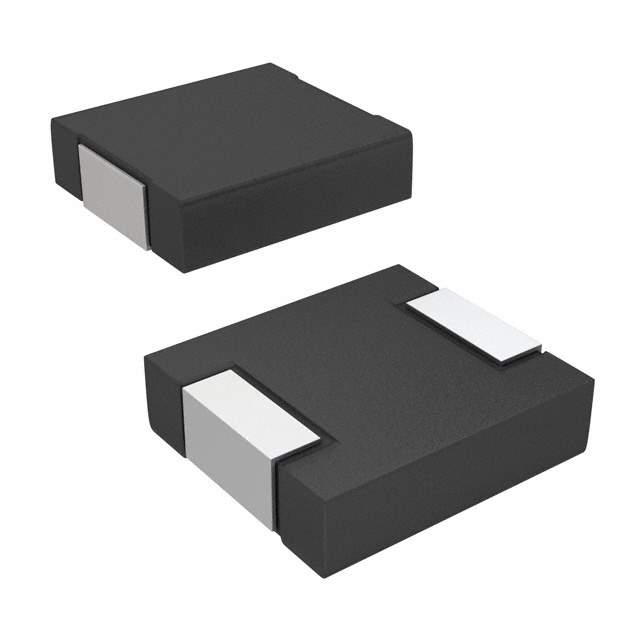

IHLP1616BZERR10M11 Real Image
Same model may have multiple batches, images only for reference.

IHLP1616BZERR10M11

Part No IHLP1616BZERR10M11
Manufacturer Vishay
Catalog Fixed Inductors
Description FIXED IND 100NH 12A 4.5 MOHM SMD / 100 nH Shielded Molded Inductor 12 A 4.5mOhm Max Nonstandard
Datasheet
IHLP1616BZERR10M11 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Vishay Dale
Series IHLP-1616BZ-11
Package Tape & Reel
Type Molded
Inductance 100 nH
Tolerance ±20%
Current Rating (Amps) 12 A
Current - Saturation (Isat) 12A
Shielding Shielded
DC Resistance (DCR) 4.5mOhm Max
Frequency - Self Resonant 299MHz
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.175" L x 0.160" W (4.45mm x 4.06mm)
Height - Seated (Max) 0.079" (2.00mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Other Names 541-IHLP1616BZERR10M11CT,IHLP1616BZERR10M11-ND,541-IHLP1616BZERR10M11DKR,541-IHLP1616BZERR10M11TR
Standard Package 4,000
Win Source Part Number 963152-IHLP1616BZERR10M11
Ultra Librarian 3D Model Ultra Librarian IHLP1616BZERR10M11 CAD Model

Description

The Vishay IHLP1616BZERR10M11 fixed inductor has an inductance of 100 nH and a current rating of 12A.

  • Manufacturer: Vishay
  • Inductance: 100 nH
  • Current Rating: 12A
  • Size: 0.175 inches x 0.160 inches
  • Height: 0.079 inches (Max)
  • Shielded: Yes
  • Type: Molded
  • Tolerance: ±20%
  • DC Resistance: 4.5mOhm Max
  • Operating Temperature: -55°C to 125°C
  • Packaging: Tape and Reel
  • MSL Level: 1 (unlimited)
  • Standard Package: 4,000
