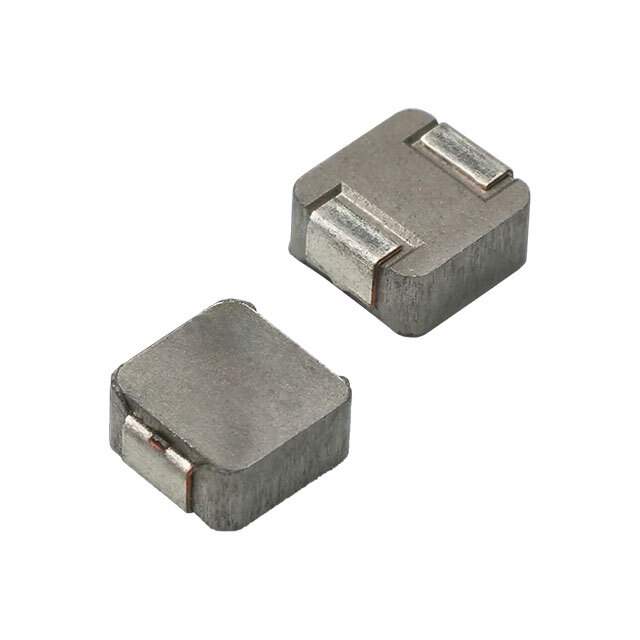

IHLP1616BZER2R2MA1 Real Image
Same model may have multiple batches, images only for reference.

IHLP1616BZER2R2MA1

Part No IHLP1616BZER2R2MA1
Manufacturer Vishay
Catalog Fixed Inductors
Description IHLP-1616BZ-A1 2.2 20% ER E3 / 2.2 µH Shielded Inductor 2.85 A 90mOhm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Vishay Dale
Series IHLP-1616BZ-A1
Package Tape & Reel
Material - Core Metal Composite
Inductance 2.2 µH
Tolerance ±20%
Current Rating (Amps) 2.85 A
Current - Saturation (Isat) 6A
Shielding Shielded
DC Resistance (DCR) 90mOhm Max
Frequency - Self Resonant 39MHz
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.175" L x 0.160" W (4.45mm x 4.06mm)
Height - Seated (Max) 0.079" (2.00mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Names 541-IHLP1616BZER2R2MA1TR,541-IHLP1616BZER2R2MA1DKR,541-IHLP1616BZER2R2MA1CT
Standard Package 4,000
Win Source Part Number 960392-IHLP1616BZER2R2MA1
Ultra Librarian 3D Model Ultra Librarian IHLP1616BZER2R2MA1 CAD Model

Description

The Vishay IHLP-1616BZ-A1 is a fixed inductor with an inductance of 2.2μH and a tolerance of ±20%.

  • Core Material: Metal composite
  • DC Resistance (DCR): 90mOhm Max
  • Height: 0.079" (2.00mm)
  • Package: Nonstandard
  • Frequency Self-Resonant: 39MHz
  • Shielded: Yes
  • Designed for: Fixed inductors
  • Current Rating: 2.85A
  • Quantity: 4,000 units
