Same model may have multiple batches, images only for reference.

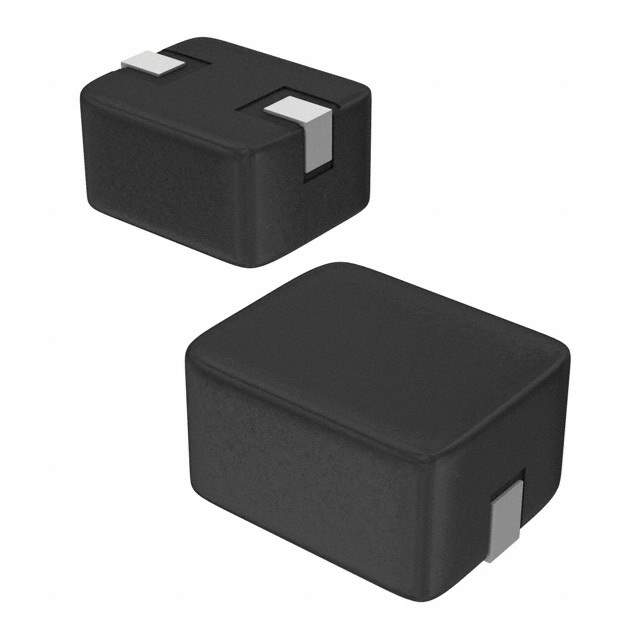

IHLP1212BZERR68M11 Real Image
Same model may have multiple batches, images only for reference.

IHLP1212BZERR68M11

Part No IHLP1212BZERR68M11
Manufacturer Vishay
Catalog Fixed Inductors
Description FIXED IND 680NH 5.5A 20.4MOHM SM / 680 nH Shielded Molded Inductor 5.5 A 20.4mOhm Max Nonstandard
Datasheet
IHLP1212BZERR68M11 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Vishay Dale
Series IHLP-1212BZ-11
Package Tape & Reel
Type Molded
Inductance 680 nH
Tolerance ±20%
Current Rating (Amps) 5.5 A
Current - Saturation (Isat) 5A
Shielding Shielded
DC Resistance (DCR) 20.4mOhm Max
Frequency - Self Resonant 105MHz
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.144" L x 0.118" W (3.65mm x 3.00mm)
Height - Seated (Max) 0.079" (2.00mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names 541-1317-1,541-1317-2,541-1317-6
Standard Package 3,000
Win Source Part Number 1029269-IHLP1212BZERR68M11
Ultra Librarian 3D Model Ultra Librarian IHLP1212BZERR68M11 CAD Model

Description

The IHLP1212BZERR68M11 is a molded fixed inductor from Vishay Dale's IHLP-1212BZ-11 series.

  • Series: IHLP-1212BZ-11
  • Inductance: 680 nH
  • Tolerance: ±20%
  • Shielding: Shielded
  • Mounting: SMD (SMT)
  • DC Resistance (DCR): 20.4mOhm Max
  • Current Rating: 5.5 A
  • Dimension (L x W): 0.144" L x 0.118" W (3.65mm x 3.00mm)
  • Height (Seated): 0.079" (2.00mm)
  • Inductance Frequency Test: 100 kHz
  • Self-Resonant Frequency: 105MHz
  • Suitability: Suitable for use in various applications
  • Packaging: Tape and reel format
