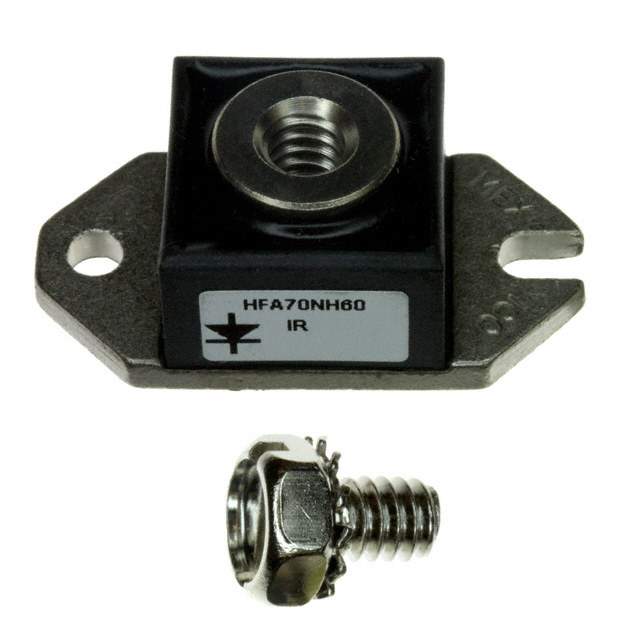

HFA70NH60 Real Image
Same model may have multiple batches, images only for reference.

HFA70NH60

Part No HFA70NH60
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description Ultrafast, Soft Recovery Diode | DIODE GEN PURP 600V 70A HALFPAK
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Status Obsolete
Diode Type Standard
Voltage - DC Reverse (Vr) (Maximum) 600V
Current - Average Rectified (Io) 70A
Voltage - Forward (Vf) (Maximum) at If 1.5V at 70A
Speed Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 120ns
Current - Reverse Leakage at Vr 20μA at 600V
Mounting Style Chassis Mount
Manufacturer Package D-67 HALF-PAK
Supplier Device Package HALF-PAK
Manufacturer Pack Quantity 50
MSL Level 1 (Unlimited)
Win Source Part Number 1180181-HFA70NH60
Manufacturer Homepage www.irf.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian HFA70NH60 CAD Model

Description

The Vishay HFA70NH60 is a fast recovery diode designed for use in discrete semiconductor products.

  • Current Average Rectified (Io): 70A
  • Reverse Recovery Time (trr): 120ns
  • Voltage: 600V
  • Package: Bulk
  • Mounting Style: Chassis Mount
  • ECCN: EAR99
