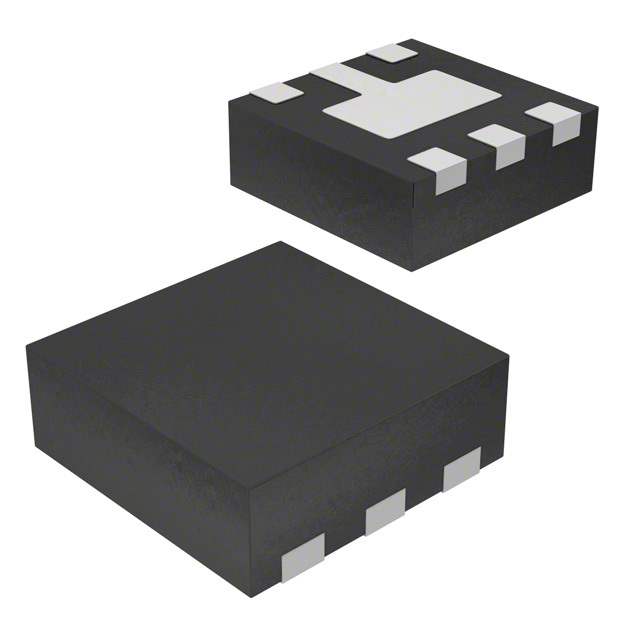

GMF05LC-HS3-GS08 Real Image
Same model may have multiple batches, images only for reference.

GMF05LC-HS3-GS08

Part No GMF05LC-HS3-GS08
Manufacturer Vishay
Catalog TVS - Diodes
Description TVS DIODE 5VWM 12.5VC LLP756A
Datasheet
GMF05LC-HS3-GS08 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Vishay
Packaging Reel - TR
Status Obsolete(EOL)
Type Zener
Unidirectional Channels 5
STAND-OFF Voltage (Vwm) 5V (Min)
Minimum Breakdown Voltage 6V
Max Clamping Voltage 12.5V
Peak Pulse Current(Ippm) 5A (8/20μs)
Power Dissipation - Pd 70W
Applications General Purpose
Capacitance @ Frequency 43pF @ 1MHz
Temperature Range - Operating -55°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package LLP75-6A
Win Source Part Number 001387-GMF05LC-HS3-GS08
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian GMF05LC-HS3-GS08 CAD Model

Description

The Vishay GMF05LC-HS3-GS08 is a zener diode designed for general-purpose applications. It has a minimum breakdown voltage of 6V and a maximum clamping voltage of 12.5V. The diode has a peak pulse current of 5A (8/20μs) and a power dissipation of 70W. It is packaged in a LLP75-6A case and is mounted on a surface-mount device (SMD). The diode has a stand-off voltage of 5V (Min) and 5 unidirectional channels. The capacitance at 1MHz is 43pF. The product is categorized under circuit protection and is now obsolete (EOL). The temperature range for operating is from -55°C to 125°C (TJ). The supply and demand status is sufficient.
