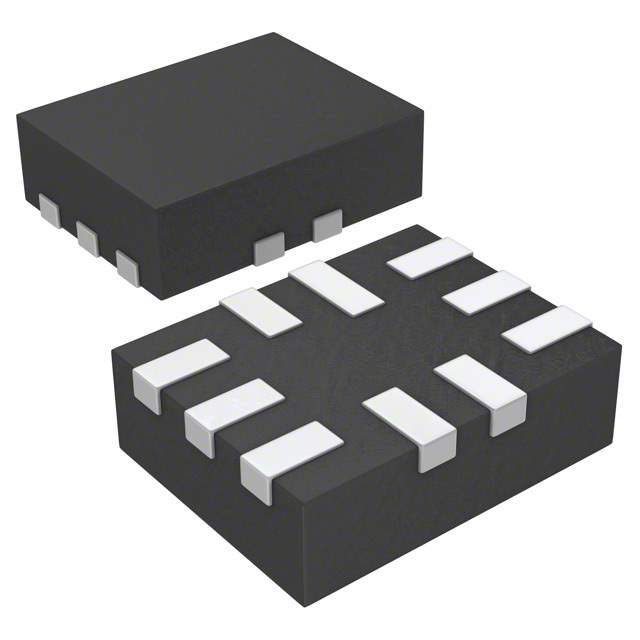

DG2735ADN-T1-GE4 Real Image
Same model may have multiple batches, images only for reference.

DG2735ADN-T1-GE4

Part No DG2735ADN-T1-GE4
Manufacturer Vishay
Catalog Interface - Analog Switches, Multiplexers, Demultiplexers
Description IC SWITCH DPDT .6 OHM 10MINIQFN / Low Voltage, 0.6ohm, Dual SPDT Analog Switch
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Vishay Siliconix
Packaging Reel
Switch Circuit SPDT
Number of Circuits 2
On-State Resistance (Maximum) 500mOhm
Channel-to-Channel Matching (ΔRon) 60mOhm
Single Supply Voltage (V+) 1.65V ~ 4.3V
Switch Time (Ton, Toff) (Maximum) 78ns, 58ns
-3db Bandwidth 50MHz
Channel Capacitance (CS(off), CD(off)) 55pF
Current - Leakage (IS(off)) (Maximum) 2nA
Crosstalk -70dB at 100kHz
Temperature Range - Operating -40°C ~ 85°C
Manufacturer Package 10-UFQFN
Supplier Device Package 10-miniQFN (1.4x1.8)
Mounting Style SMD
Part Number Series DG2735
Manufacturer Pack Quantity 3,000
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Sufficient
Win Source Part Number 801270-DG2735ADN-T1-GE4
Ultra Librarian 3D Model Ultra Librarian DG2735ADN-T1-GE4 CAD Model

Description

The Vishay Siliconix DG2735ADN-T1-GE4 is a surface mounted SPDT switch circuit integrated circuit from Vishay Siliconix.

  • Circuits: 2
  • Channel-to-Channel Matching (ΔRon): 60mOhm
  • Switch Time (Ton, Toff) (Maximum): 78ns, 58ns
  • On-State Resistance (Maximum): 500mOhm
  • Current Leakage (IS(off)) (Maximum): 2nA
  • -3db Bandwidth: 50MHz
  • Crosstalk: -70dB @ 100kHz
  • Package: 10-miniQFN (1.4x1.8)
  • Single Supply Voltage (V+): 1.65V to 4.3V
  • Operating Temperature: -40°C to 85°C
  • Manufacturer Pack Quantity: 3,000
  • MSL Level: 1 (Unlimited)
  • Part Number Series: DG2735
