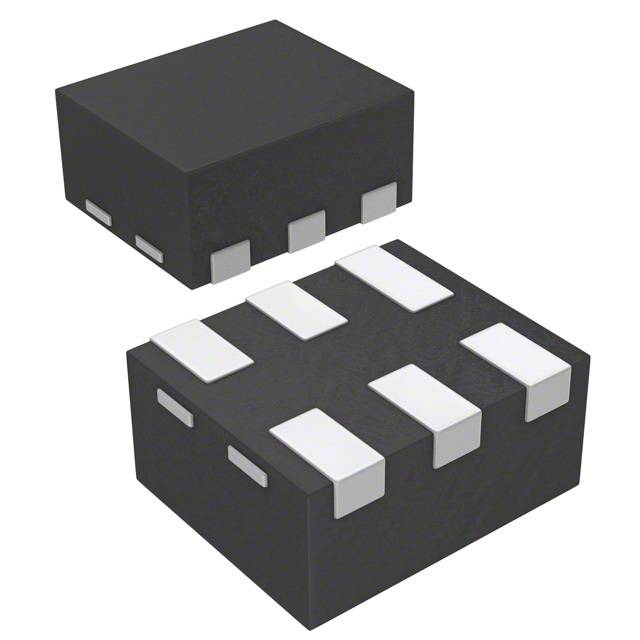

DG2512DN-T1-E4 Vishay
Same model may have multiple batches, images only for reference.

DG2512DN-T1-E4

Part No DG2512DN-T1-E4
Manufacturer Vishay
Catalog Interface - Analog Switches, Multiplexers, Demultiplexers
Description IC SWITCH DUAL LV 6MINIQFN
Datasheet
DG2512DN-T1-E4 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Vishay
Packaging Reel - TR
Status Obsolete(EOL)
Switch Circuit SPST - NC
Number of Circuits 1
Max On Resistance 1.3 Ohm
Channel-to-Channel Matching (ΔRon) 150 mOhm (Max)
Single Supply Voltage (V+) 1.8 V to 5.5 V
Max Switch Time (Ton,Toff) 35ns, 31ns
Charge Injection 14pC
Channel Capacitance(CS off, CD off) 19pF
Max Leakage Current (IS off) 2nA
Crosstalk -64dB @ 1MHz
Temperature Range - Operating -40°C to 85°C (TA)
Case / Package 6-miniQFN
Win Source Part Number 1033158-DG2512DN-T1-E4
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian DG2512DN-T1-E4 CAD Model

Description

The Vishay DG2512DN-T1-E4 is an SPST-NC switch circuit with a charge injection of 14pC and crosstalk of -64dB @ 1MHz.

  • Charge Injection: 14pC
  • Crosstalk: -64dB @ 1MHz
  • Channel-to-Channel Matching (ΔRon): 150 mOhm (Max)
  • Maximum On Resistance: 1.3 Ohm
  • Temperature Range: -40°C to 85°C (TA)
  • Single Supply Voltage (V+): 1.8 V to 5.5 V
  • Maximum Switch Time (Ton,Toff): 35ns, 31ns
  • Channel Capacitance (CS off, CD off): 19pF
  • Maximum Leakage Current (IS off): 2nA
