The Vishay DG2032DN-T1-E4 is a SPDT switch integrated circuit with 2 circuits and a charge injection of 38pC.

• Crosstalk: -82dB @ 1MHz
• Channel-to-Channel Matching (ΔRon): 400 mOhm (Max)
• Designed for: Integrated circuits
• Temperature Range: -40°C to 85°C (TA)
• Maximum On Resistance: 5 Ohm

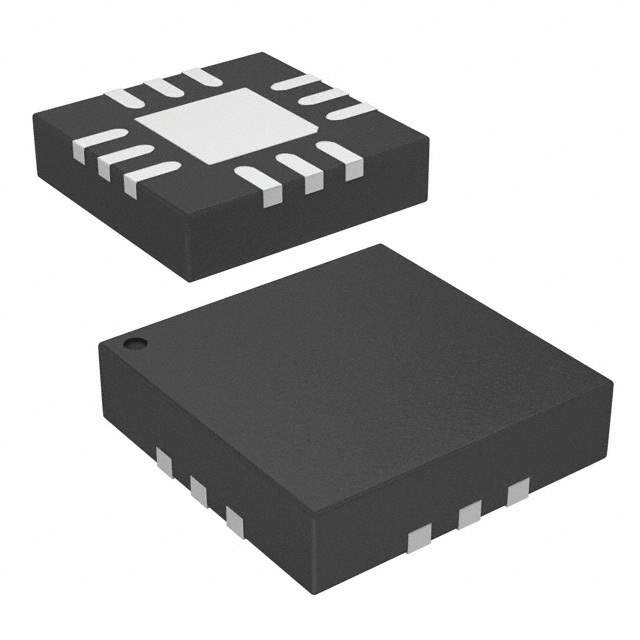

• Case / Package: 12-QFN (3x3)
• Single Supply Voltage (V+): 1.8 V to 5.5 V
• Dual Supply Voltage (V±): Not applicable
• Maximum Switch Time (Ton,Toff): 53ns and 38ns
• Channel Capacitance (CS off, CD off): 15pF
• Maximum Leakage Current (IS off): 1nA
• Availability: in the open market
• Supply and demand status: Sufficient
