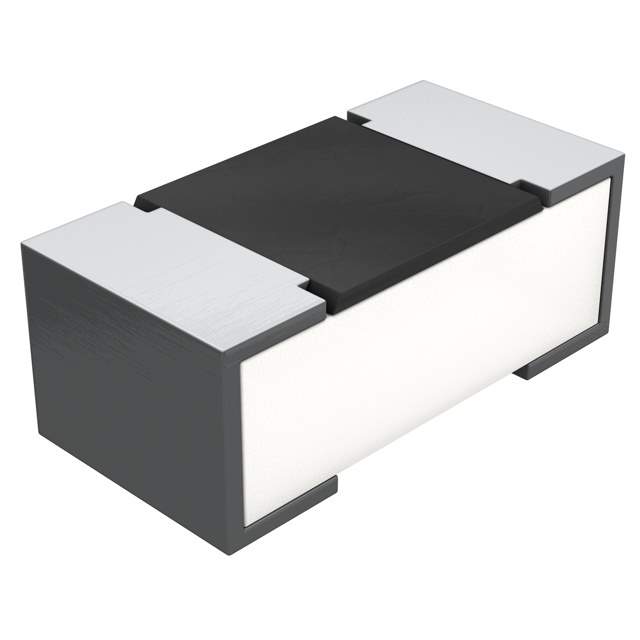

The CRCW02011K20FKED is a thick film chip resistor from Vishay. This surface-mount resistor is designed for general-purpose applications where small size and high reliability are essential. Its compact size makes it suitable for use in densely populated circuit boards.

Applications

• Consumer Electronics
• Mobile Devices
• Industrial Control Systems
• Medical Equipment
• Automotive Electronics

Features

• Resistance Value: 1.2 kΩ (1200 Ohms)
• Tolerance: 1%
• Power Rating: 0.05W (1/20W)
• Temperature Coefficient: ±100 ppm/°C
• Package: 0201 (0.6 mm x 0.3 mm)
• Termination: Wraparound termination

Benefits

• Small Size: The 0201 package provides a very small footprint, allowing for high-density circuit designs.
• High Precision: 1% tolerance ensures accurate and consistent resistance values.
• Reliable Performance: Thick film construction provides stable and reliable performance.
• Wide Application Range: Suitable for a wide range of general-purpose applications.
• Automatic Placement: Designed for automated surface mount assembly.

Additional Details

The CRCW02011K20FKED is a RoHS compliant resistor, adhering to environmental standards. It has wraparound terminations which provide secure contact to the PCB. The 0201 package size is extremely small and requires specialized handling and placement equipment. It is commonly used in miniaturized electronic devices and circuits.
