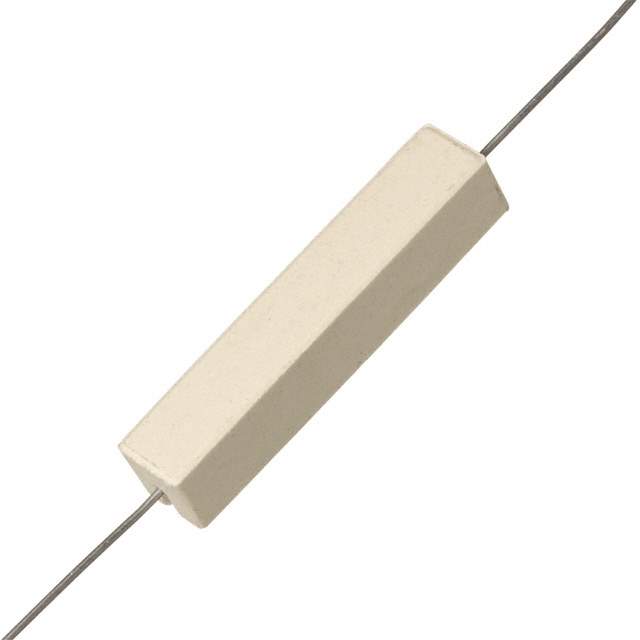

CPW05100R0JB143 Real Image
Same model may have multiple batches, images only for reference.

CPW05100R0JB143

Part No CPW05100R0JB143
Manufacturer Vishay
Catalog Through Hole Resistors
Description RES 100 OHM 5W 5% AXIAL / 100 Ohms ±5% 5W Through Hole Resistor Axial Flame Proof, Pulse Withstanding, Safety Wirewound
Datasheet
CPW05100R0JB143 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Through Hole Resistors
Mfr Vishay Dale
Series CPW
Package Bulk
Resistance 100 Ohms
Tolerance ±5%
Power (Watts) 5W
Composition Wirewound
Features Flame Proof, Pulse Withstanding, Safety
Temperature Coefficient ±30ppm/°C
Temperature Range - Operating -65°C ~ 275°C
Package / Case Axial
Supplier Device Package Axial
Dimension 0.875" L x 0.375" W (22.22mm x 9.52mm)
Number of Terminations 2
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0080
Standard Package 1
Win Source Part Number 1204095-CPW05100R0JB143
Ultra Librarian 3D Model Ultra Librarian CPW05100R0JB143 CAD Model

Description

The Vishay Dale CPW series resistor (part number: 1204095-CPW05100R0JB143) is a through-hole resistor with a power rating of 5W and a resistance of 100 Ohms.

  • Power Rating: 5W
  • Resistance: 100 Ohms
  • Tolerance: ±5%
  • Temperature Coefficient: ±30ppm/°C
  • Temperature Range: -65°C to 275°C
  • Features: Flame Proof, Pulse Withstanding
  • Package: Axial
  • Dimension: 0.875" L x 0.375" W (22.22mm x 9.52mm)
