Products specifications Report Issue?

Category Capacitors - Film Capacitors
Mfr Vishay Beyschlag/Draloric/BC Components
Series MKT370
Product Status Active
Capacitance 1 µF
Tolerance ±10%
Voltage Rating - AC 40V
Voltage Rating - DC 63V
Dielectric Material Polyester, Metallized
Temperature Range - Operating -55°C ~ 100°C
Mounting Type Through Hole
Package / Case Radial
Size / Dimension 0.283" L x 0.236" W (7.20mm x 6.00mm)
Height - Seated (Max) 0.433" (11.00mm)
Termination PC Pins
Lead Spacing 0.200" (5.08mm)
Applications Automotive
Ratings AEC-Q200
Features Long Life
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0010
Win Source Part Number 1360060-BFC237075105
Ultra Librarian 3D Model Ultra Librarian BFC237075105 CAD Model

Description

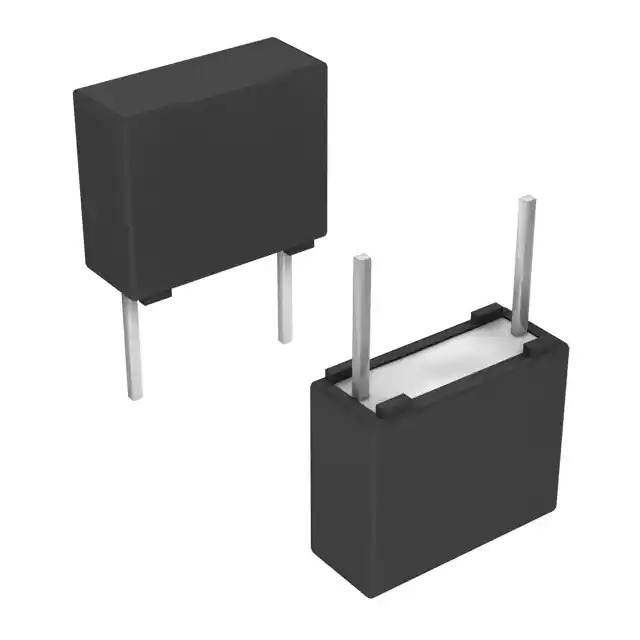

The BFC237075105 is a film capacitor from Vishay Beyschlag/Draloric/BC Components' MKT370 series.

  • Capacitance: 1μF
  • Tolerance: ±10%
  • Application: Automotive
  • AEC-Q200: Certified
  • Temperature Range: -55°C to 100°C
  • Mounting Type: Radial
  • Lead Spacing: 0.200" (5.08mm)
  • Size: 0.283" L x 0.236" W (7.20mm x 6.00mm)
  • Height: 0.433" (11.00mm)
  • Voltage Rating (AC): 40V AC
  • Voltage Rating (DC): 63V DC
  • Dielectric Material: Polyester
  • Construction: Metallized
  • RoHS Compliant: Yes
