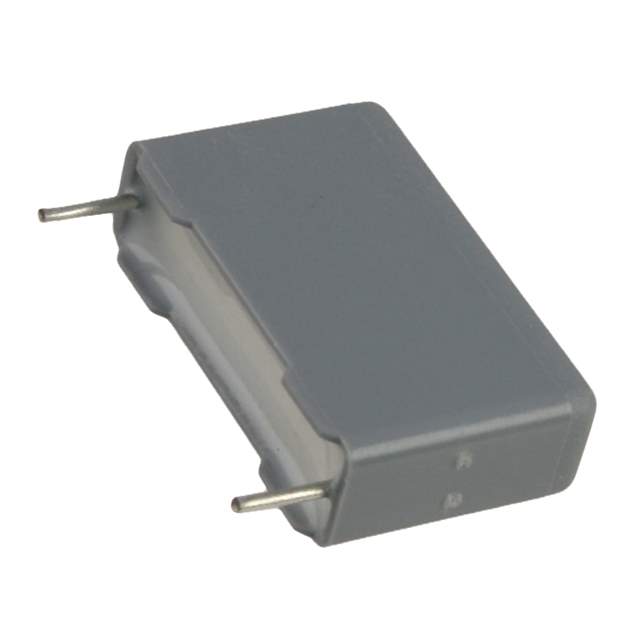

BFC233860682 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr Vishay Beyschlag/Draloric/BC Components
Series MKP338 6
Package Bulk
Capacitance 6800 pF
Tolerance ±20%
Voltage Rating - AC 300V
Voltage Rating - DC 1000V (1kV)
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -55°C ~ 105°C
Mounting Type Through Hole
Package / Case Radial
Dimension 0.689" L x 0.197" W (17.50mm x 5.00mm)
Height - Seated (Max) 0.433" (11.00mm)
Termination PC Pins
Lead Spacing 0.591" (15.00mm)
Applications Automotive; EMI, RFI Suppression
Ratings AEC-Q200, Y2
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.25.0020
Other Names BC2599,2266-BFC233860682
Standard Package 1,000
Win Source Part Number 1164291-BFC233860682
Ultra Librarian 3D Model Ultra Librarian BFC233860682 CAD Model

Description

The Vishay Beyschlag/Draloric/BC Components MKP338 6 series capacitor is a film capacitor with a capacitance of 6800 pF and a tolerance of ±20%.

  • Manufacturer: Vishay Beyschlag/Draloric/BC Components
  • Product Name: MKP338 6
  • Capacitance: 6800 pF
  • Tolerance: ±20%
  • Voltage Rating (AC): 300V AC
  • Voltage Rating (DC): 1000V DC
  • Application: Automotive, EMI/RFI Suppression
  • Material: Polypropylene (PP)
  • Metallization: Metallized
  • Mounting Type: Through-Hole
  • Package/Case: Radial
  • Height (Seated): 0.433" (11.00mm)
  • Lead Spacing: 0.591" (15.00mm)
  • Standard Package: 1,000 units
  • Compliance: AEC-Q200, Y2
  • Operating Temperature: -55°C to 105°C
  • Dimensions: 0.689" L x 0.197" W (17.50mm x 5.00mm)
  • Alternative Parts: BFC233860682
