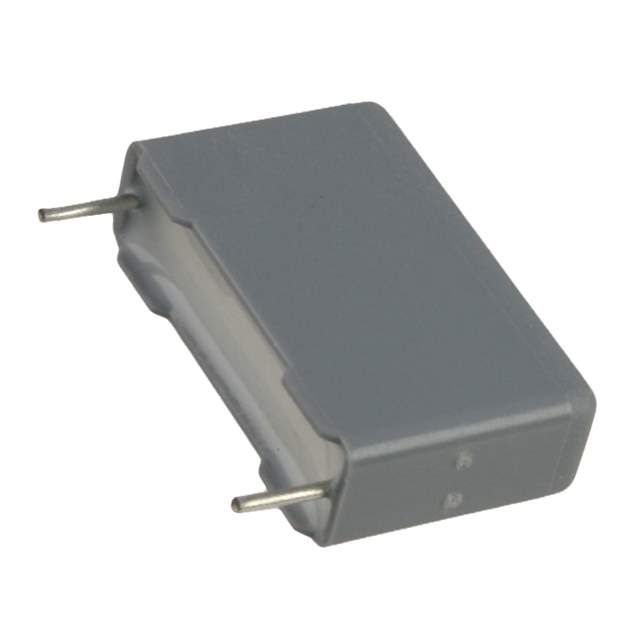

BFC233860563 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr Vishay Beyschlag/Draloric/BC Components
Series MKP338 6
Package Bulk
Capacitance 0.056 µF
Tolerance ±20%
Voltage Rating - AC 300V
Voltage Rating - DC 1000V (1kV)
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -55°C ~ 105°C
Mounting Type Through Hole
Package / Case Radial
Dimension 0.689" L x 0.394" W (17.50mm x 10.00mm)
Height - Seated (Max) 0.650" (16.50mm)
Termination PC Pins
Lead Spacing 0.591" (15.00mm)
Applications Automotive; EMI, RFI Suppression
Ratings AEC-Q200, Y2
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.25.0020
Other Names BC5065,BFC233860563-ND,222233860563
Standard Package 500
Win Source Part Number 1156830-BFC233860563
Ultra Librarian 3D Model Ultra Librarian BFC233860563 CAD Model

Description

The Vishay Beyschlag/Draloric/BC Components MKP338 6 is a radial package type film capacitor with a capacitance of 0.056 µF and a tolerance of ±20%.

  • Voltage Rating: It has a voltage rating of 300V AC and 1000V DC.
  • Applications: The capacitor is suitable for use in automotive and EMI/RFI suppression applications.
  • Ratings: It is AEC-Q200 and Y2 rated and has a lead spacing of 0.591 inches.
  • Material: The capacitor is made of polypropylene (PP) and is metallized.
  • Height/Package: It has a height of 0.650 inches and a standard package of 500.
  • Temperature Range: The temperature range for operating the capacitor is -55°C to 105°C.
