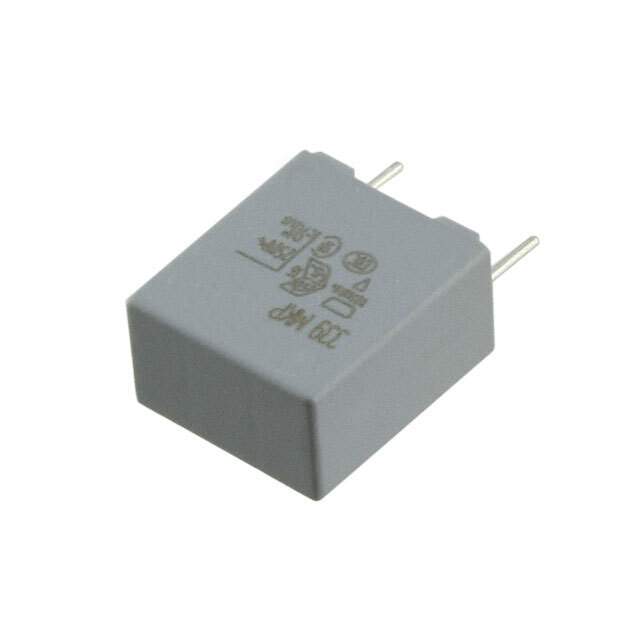

BFC233990005 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr Vishay Beyschlag/Draloric/BC Components
Series MKP339
Package Bulk
Capacitance 0.047 µF
Tolerance ±20%
Voltage Rating - AC 310V
Voltage Rating - DC 630V
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -55°C ~ 110°C
Mounting Type Through Hole
Package / Case Radial
Dimension 0.689" L x 0.197" W (17.50mm x 5.00mm)
Height - Seated (Max) 0.433" (11.00mm)
Termination PC Pins
Lead Spacing 0.591" (15.00mm)
Applications Automotive; EMI, RFI Suppression
Ratings AEC-Q200, X2
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.25.0020
Other Names 222233990005
Standard Package 1,250
Win Source Part Number 993919-BFC233990005
Ultra Librarian 3D Model Ultra Librarian BFC233990005 CAD Model

Description

The Vishay MKP339 is a film capacitor with a capacitance of 0.047 µF and a tolerance of ±20%.

  • Manufacturer: Vishay Beyschlag/Draloric/BC Components
  • Capacitance: 0.047 µF
  • Tolerance: ±20%
  • Voltage Rating (AC): 310V (AC)
  • Voltage Rating (DC): 630V (DC)
  • Suitable for: Automotive and EMI/RFI suppression applications
  • Height: 0.433" (11.00mm)
  • Lead Spacing: 0.591" (15.00mm)
  • Packaging: Bulk
  • Standard Package: 1,250
  • Rated: AEC-Q200 and X2
  • Dielectric Material: Polypropylene (PP), metallized
  • Mounting Type: Through hole
  • Package/Case: Radial
  • Temperature Range (Operating): -55°C to 110°C
