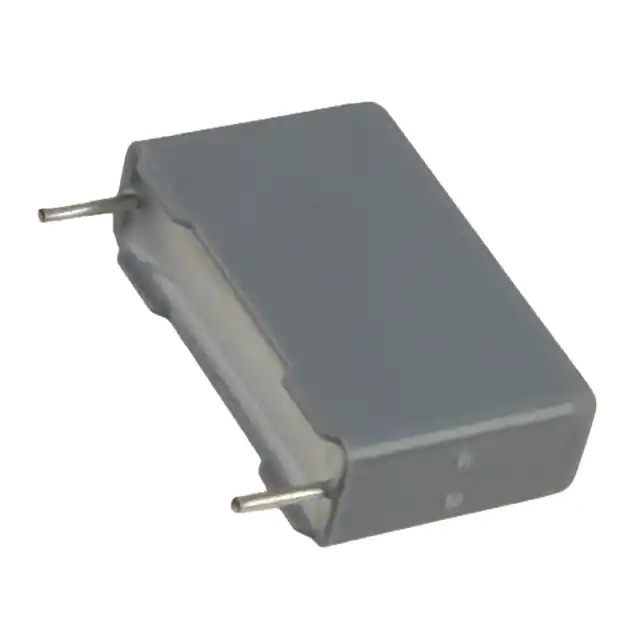

BFC233860102 Vishay
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Film Capacitors
Mfr Vishay Beyschlag/Draloric/BC Components
Series MKP338 6
Package Bulk
Product Status Active
Capacitance 1000 pF
Tolerance ±20%
Voltage Rating - AC 300V
Voltage Rating - DC 1000V (1kV)
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -55°C ~ 105°C
Mounting Type Through Hole
Package / Case Radial
Size / Dimension 0.394" L x 0.157" W (10.00mm x 4.00mm)
Height - Seated (Max) 0.354" (9.00mm)
Termination PC Pins
Lead Spacing 0.295" (7.50mm)
Applications Automotive; EMI, RFI Suppression
Ratings AEC-Q200, Y2
Features -
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0020
Win Source Part Number 1360598-BFC233860102
Ultra Librarian 3D Model Ultra Librarian BFC233860102 CAD Model

Description

The 1360598-BFC233860102 is a film capacitor from Vishay Beyschlag/Draloric/BC Components' MKP338 6 series.

  • Package / Case: Radial
  • Capacitance: 1000 pF
  • Voltage Rating (AC): 300V
  • Voltage Rating (DC): 1000V
  • Tolerance: ±20%
  • AEC-Q200: Yes
  • Y2 Rated: Yes
  • Application: Automotive and EMI/RFI Suppression
  • Lead Spacing: 0.295" (7.50mm)
  • Dimensions: 0.394" L x 0.157" W (10.00mm x 4.00mm)
  • Height (Seated): 0.354" (9.00mm)
  • Operating Temperature: -55°C to 105°C
  • REACH Unaffected: Yes
  • Product Status: Active
