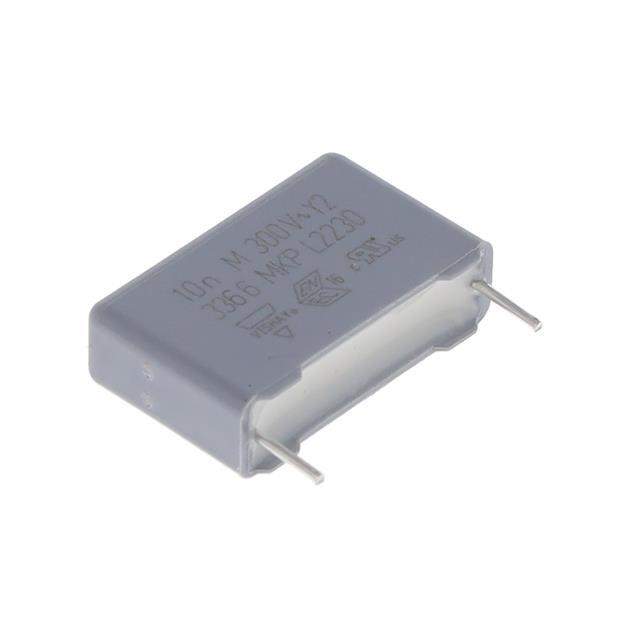

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer Vishay BC Components
Packaging Bulk
Capacitance 10000pF
Tolerance ±20%
Voltage Rating - AC 300V
Voltage Rating - DC 1000V (1kV)
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -55°C ~ 105°C
Mounting Style Through Hole
Manufacturer Package Radial
Dimension 0.689" L x 0.197" W (17.50mm x 5.00mm)
Height - Seated (Maximum) 0.433" (11.00mm)
Termination PC Pins
Lead Spacing 0.591" (15.00mm)
Applications EMI, RFI Suppression
Ratings Y2
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 808432-BFC233660103
Ultra Librarian 3D Model Ultra Librarian BFC233660103 CAD Model

Description

The BFC233660103 is an EMI/RFI suppression capacitor manufactured by Vishay BC Components.

  • Package: Radial
  • Capacitance: 10000pF
  • Voltage Rating: 300V AC, 1000V DC (1kV)
