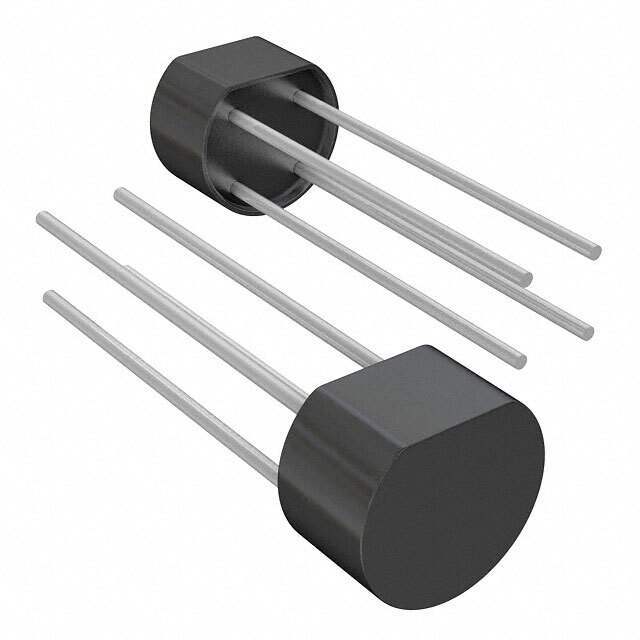

Same model may have multiple batches, images only for reference.
B80C1500G-E4/51 Vishay General Semiconductor - Diodes Division
Same model may have multiple batches, images only for reference.

B80C1500G-E4/51

Part No B80C1500G-E4/51
Manufacturer Vishay
Catalog Bridge Rectifiers
Description BRIDGE RECT 1PHASE 125V 1.5A WOG
Datasheet
B80C1500G-E4/51 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1309426-B80C1500G-E4/51
Category Discrete Semiconductor Products >Diodes >Bridge Rectifiers
Manufacturer Vishay General Semiconductor - Diodes Division
Packaging  Bulk
Part Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 125 V
Current - Average Rectified (Io) 1.5 A
Voltage - Forward (Vf) (Max) @ If 1 V @ 1 A
Current - Reverse Leakage @ Vr 10 µA @ 125 V
Ultra Librarian 3D Model Ultra Librarian B80C1500G-E4/51 CAD Model

Description

  • Ideal for printed circuit boards
  • High case dielectric strength
  • High surge current capability
  • Typical IR less than 0.1 μA
  • Solder dip 275 °C max. 10 s, per JESD 22-B106
