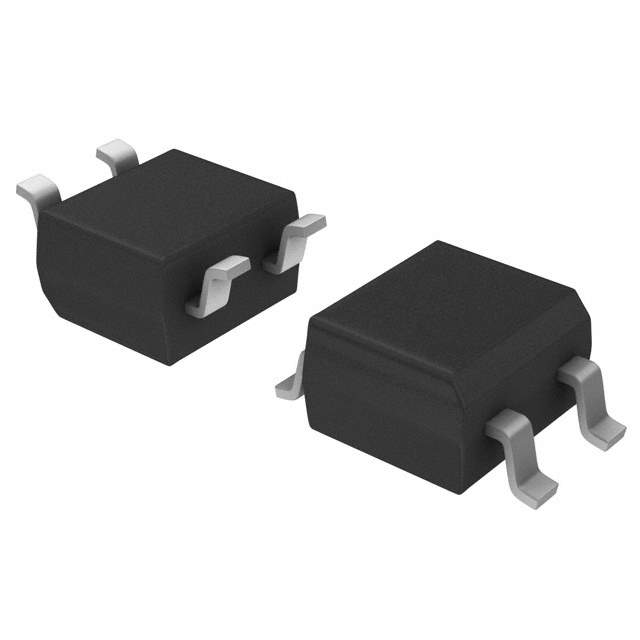

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Reel - TR
Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 600V
Current - Average Rectified (Io) 500mA
Voltage - Forward (Vf) (Max) @ If 1V @ 400mA
Current - Reverse Leakage @ Vr 5μA @ 600V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package TO-269AA (MBS)
Win Source Part Number 079379-B6S-E3/80
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name B6S
Introduction Date December 02, 2004
ECCN EAR99
Country of Origin China
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian B6S-E3/80 CAD Model

Description

B6S-E3/80 Component Description

The B6S-E3/80 is a premium electronic component, known for its precision and reliability in various high-stakes projects. Its design is focused on facilitating precise control and data processing.

  • Precision: Caters to applications requiring exact performance metrics.
  • Reliability: Offers consistent performance over its lifecycle.
  • Low Maintenance: Minimizes the need for regular upkeep.

Applications and Projects:

  • Robotics
  • Networking equipment
  • Smart technology

Additional Details:

With its high precision and reliability, the B6S-E3/80 is ideal for next-generation technological developments.
