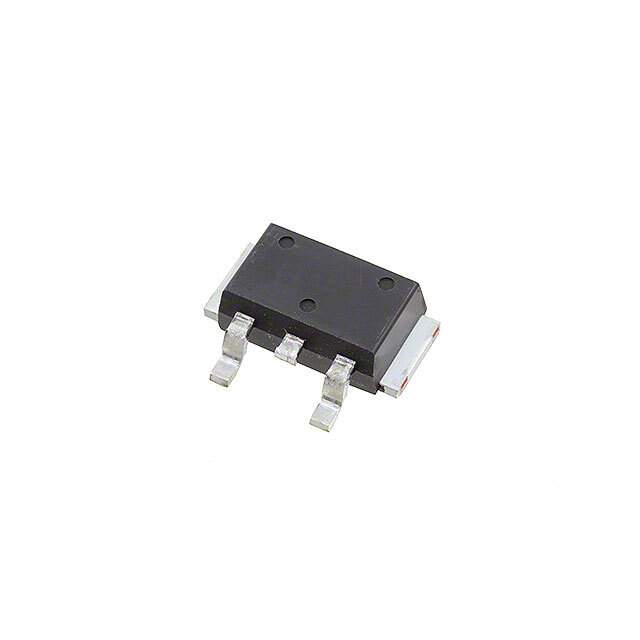

89CNQ135ASL Real Image
Same model may have multiple batches, images only for reference.

89CNQ135ASL

Part No 89CNQ135ASL
Manufacturer Vishay
Catalog Diodes, Rectifiers - Arrays
Description SCHOTTKY RECTIFIER | DIODE ARRAY SCHOTTKY 135V D618SL
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Status Obsolete
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 135V
Current - Average Rectified (Io) (per Diode) 40A
Voltage - Forward (Vf) (Maximum) at If 990mV at 40A
Speed Fast Recovery = 200mA (Io)
Current - Reverse Leakage at Vr 1.5mA at 135V
Operating Temperature - Junction -55°C ~ 175°C
Mounting Style SMD
Manufacturer Package D-61-8-SL
Supplier Device Package D-61-8-SL
Family Part Number 89CNQ135A
Manufacturer Pack Quantity 20
MSL Level 1 (Unlimited)
Win Source Part Number 1134099-89CNQ135ASL
Manufacturer Homepage www.irf.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 89CNQ135ASL CAD Model

Description

The Vishay 89CNQ135ASL is a Schottky diode designed for SMD mounting applications.

  • Product Name: 89CNQ135ASL
  • Type: Schottky Diode
  • Mounting: SMD
  • Diode Configuration: 1 pair common cathode
  • Current Average Rectified (Io) (per diode): 40A
  • Voltage DC Reverse (Vr) (Maximum): 135V
  • Voltage Forward (Vf) (Maximum) @ If: 990mV @ 40A
  • Current Reverse Leakage @ Vr: 1.5mA @ 135V
  • Status: Obsolete
  • Supply and Demand Status: Limited
  • Temperature Range: -55°C to 175°C
  • Manufacturer: Vishay
