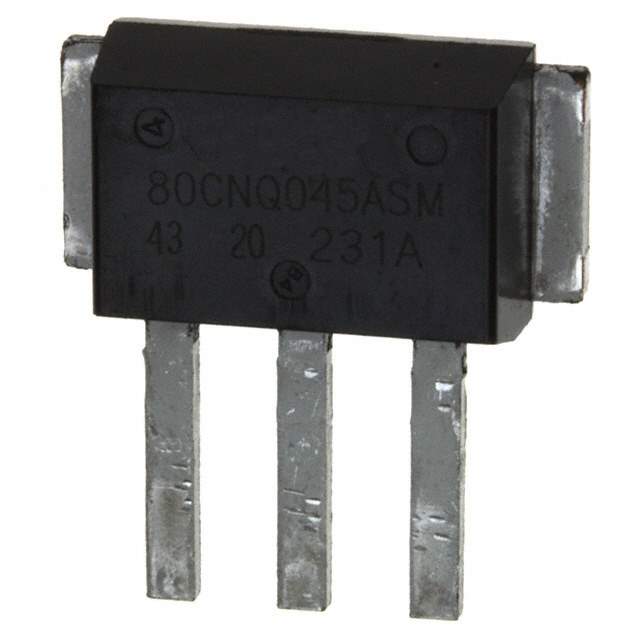

80CNQ045ASM Real Image
Same model may have multiple batches, images only for reference.

80CNQ045ASM

Part No 80CNQ045ASM
Manufacturer Vishay
Catalog Diodes, Rectifiers - Arrays
Description SCHOTTKY RECTIFIER New GenIII D-61 Package | DIODE ARRAY SCHOTTKY 45V D618SM
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Status Obsolete
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 45V
Current - Average Rectified (Io) (per Diode) 40A
Voltage - Forward (Vf) (Maximum) at If 520mV at 40A
Speed Fast Recovery = 200mA (Io)
Current - Reverse Leakage at Vr 5mA at 45V
Operating Temperature - Junction -55°C ~ 150°C
Mounting Style Through Hole
Manufacturer Package D-61-8-SM
Supplier Device Package D-61-8-SM
Family Part Number 80CNQ045
Manufacturer Pack Quantity 400
MSL Level 1 (Unlimited)
Win Source Part Number 1133833-80CNQ045ASM
Manufacturer Homepage www.irf.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 80CNQ045ASM CAD Model

Description

The 80CNQ045ASM is a fast recovery diode that features a Schottky diode configuration with a common cathode. It has a maximum voltage rating of 45V and an average rectified current of 40A per diode.

  • Package: D-61-8-SM
  • Applications: power supplies, inverters, and motor control circuits.
  • Manufacturer: Vishay Semiconductor Diodes Division
