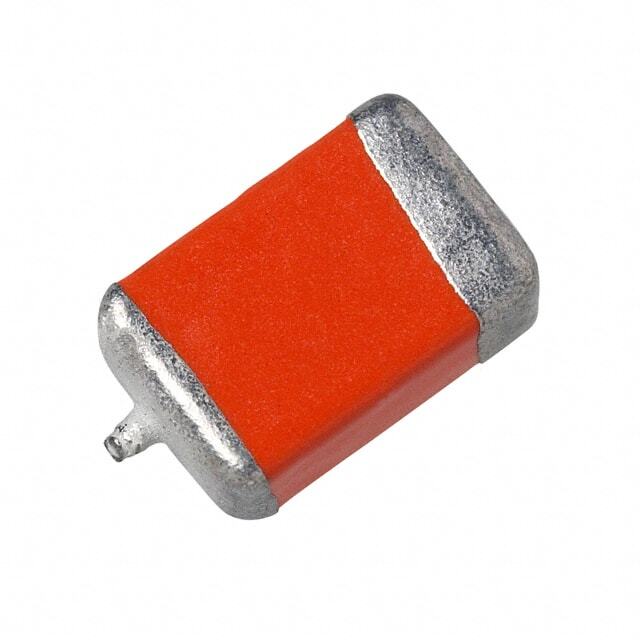

Same model may have multiple batches, images only for reference.
594D686X0010B2T
Same model may have multiple batches, images only for reference.

594D686X0010B2T

Part No 594D686X0010B2T
Manufacturer Vishay
Catalog Tantalum Capacitors
Description CAP TANT 68UF 20% 10V 1611
Datasheet
594D686X0010B2T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Tantalum Capacitors
Mfr Vishay
Series TANTAMOUNT®, 594D
Package Tape & Reel
Product Status Active
Capacitance 68 µF
Tolerance ±20%
Voltage - Rated 10 V
Type Conformal Coated
ESR (Equivalent Series Resistance) 350mOhm
Temperature Range - Operating -55°C ~ 125°C
Mounting Type Surface Mount
Package / Case 1611 (4028 Metric)
Size / Dimension 0.157" L x 0.110" W (4.00mm x 2.80mm)
Height - Seated (Max) 0.087" (2.20mm)
Manufacturer Size Code B
Features General Purpose
Standard Package 2,000 pcs
MSL Level 2A (4 Weeks)
ECCN EAR99
HTSUS 8532.21.0050
Win Source Part Number 856640-594D686X0010B2T
Ultra Librarian 3D Model Ultra Librarian 594D686X0010B2T CAD Model

Description

The 856640-594D686X0010B2T is a tantalum capacitor from Vishay's TANTAMOUNT® 594D series manufactured by Vishay.

  • Series: TANTAMOUNT® 594D
  • Type: Conformal Coated
  • Application: General-Purpose
  • Size: 0.157" L x 0.110" W (4.00mm x 2.80mm)
  • Height: 0.087" (2.20mm)
  • Mounting Type: Surface Mount
  • Capacitance: 68µF
  • Tolerance: ±20%
  • Voltage Rating: 10V
  • Equivalent Series Resistance (ESR): 350mOhm
  • Operating Temperature: -55°C to 125°C
