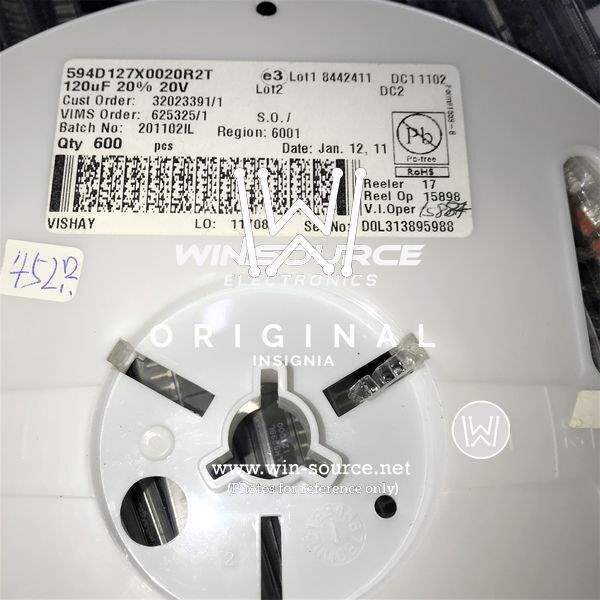

594D127X9020R2T Real Image 594D127X9020R2T label picture
Same model may have multiple batches, images only for reference.
594D127X9020R2T Real Image 594D127X9020R2T label picture
594D127X9020R2T Real Image 594D127X9020R2T label picture
Same model may have multiple batches, images only for reference.

594D127X9020R2T

Part No 594D127X9020R2T
Manufacturer Vishay
Catalog Tantalum Capacitors
Description CAP TANT 120UF 10% 20V 2824
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Vishay Sprague
Packaging Reel
Capacitance 120μF
Tolerance ±10%
Voltage - Rated 20V
Type Conformal Coated
ESR (Equivalent Series Resistance) 80mOhm
Temperature Range - Operating -55°C ~ 125°C
Mounting Style SMD
Manufacturer Package 2824 (7260 Metric)
Dimension 0.283" L x 0.236" W (7.20mm x 6.00mm)
Height - Seated (Maximum) 0.148" (3.75mm)
Manufacturer Size Code R
Features General Purpose
Manufacturer Pack Quantity 600
MSL Level 2A (4 Weeks)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 813096-594D127X9020R2T
Ultra Librarian 3D Model Ultra Librarian 594D127X9020R2T CAD Model

Description

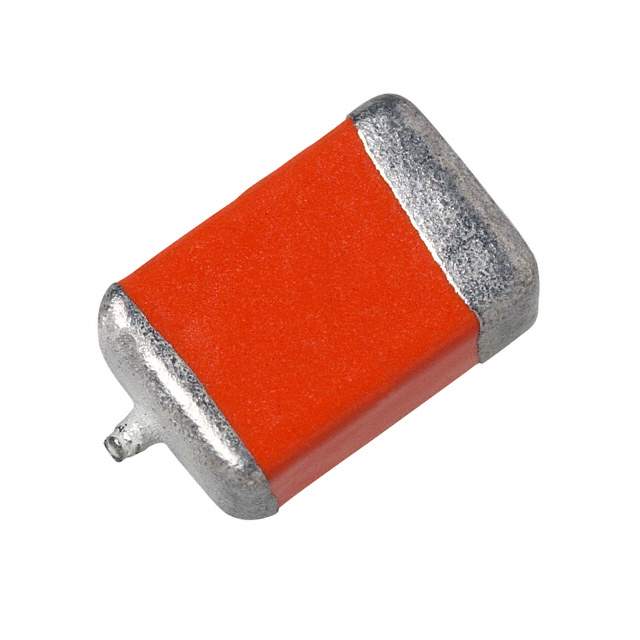

The 594D127X9020R2T is a conformal coated SMD capacitor from Vishay Sprague.

  • Capacitance: 120μF
  • Tolerance: ±10%
  • Voltage Rating: 20V
  • ESR: 80mOhm
  • Manufacturer Size Code: R
  • Operating Temperature Range: -55°C to 125°C
  • Mounting Style: SMD
  • Package: 2824 (7260 Metric)
  • Popularity: Low
  • Supply and Demand: Limited
  • Manufacturer Pack Quantity: 600 pieces
  • MSL Level: 2A (4 weeks)
  • Lifetime @ Temp: -
